Ritter
2C ACF cartridges 200-490ml

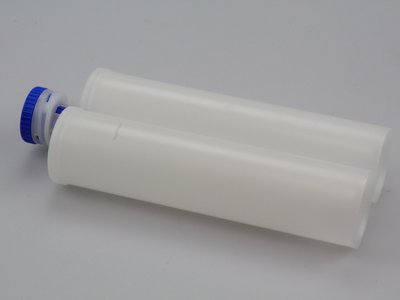

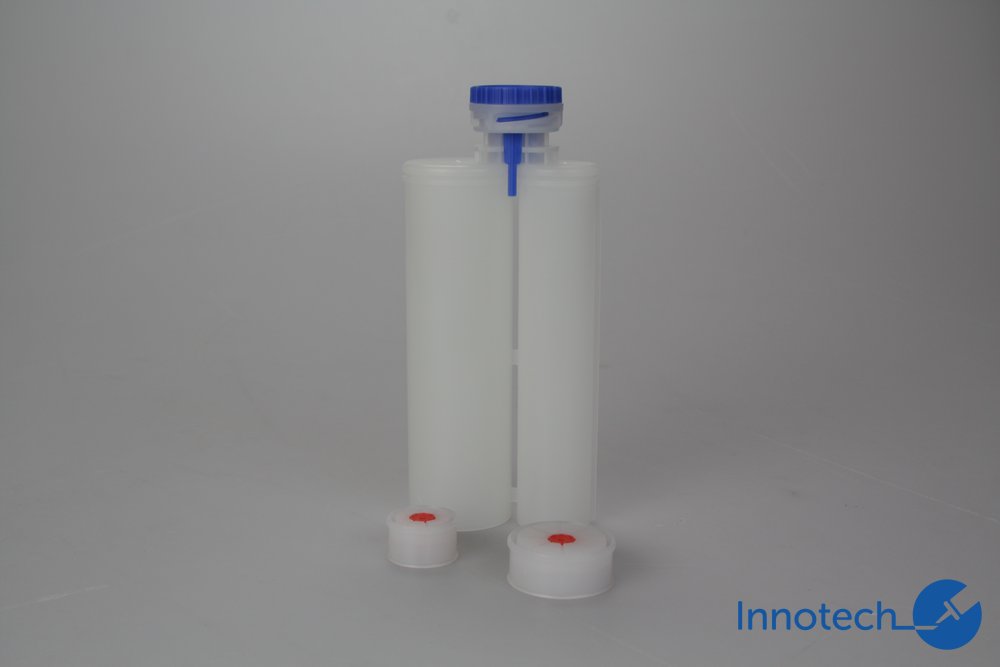

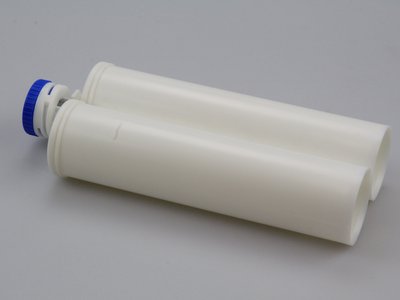

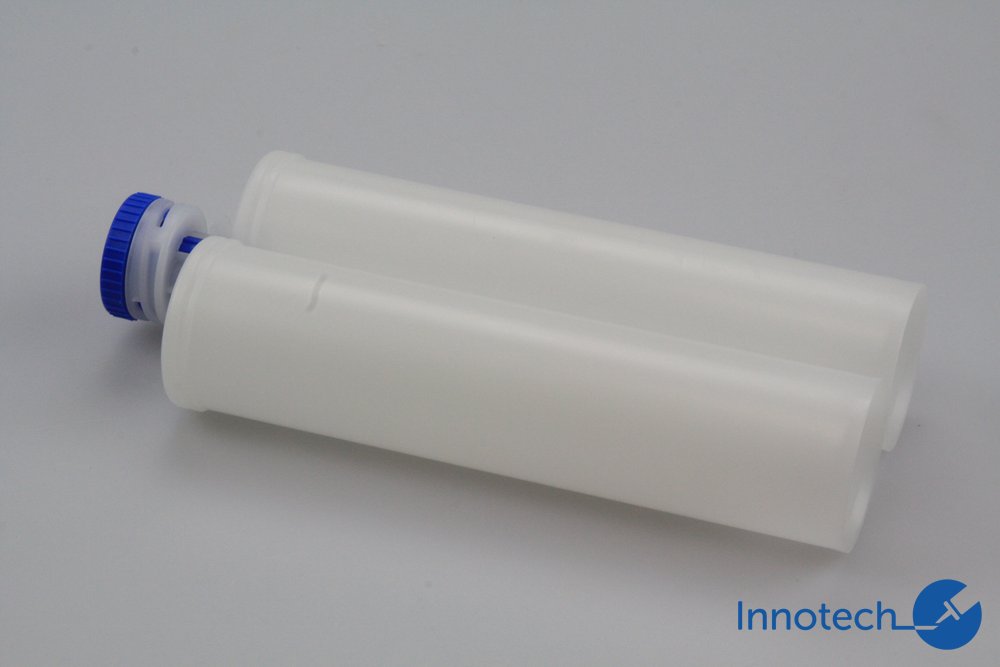

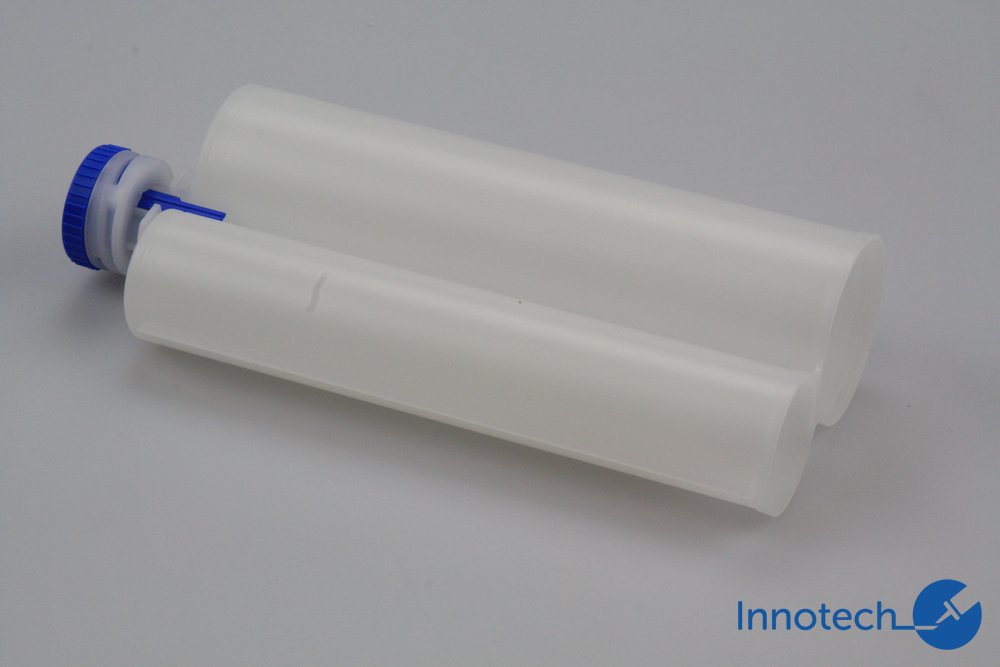

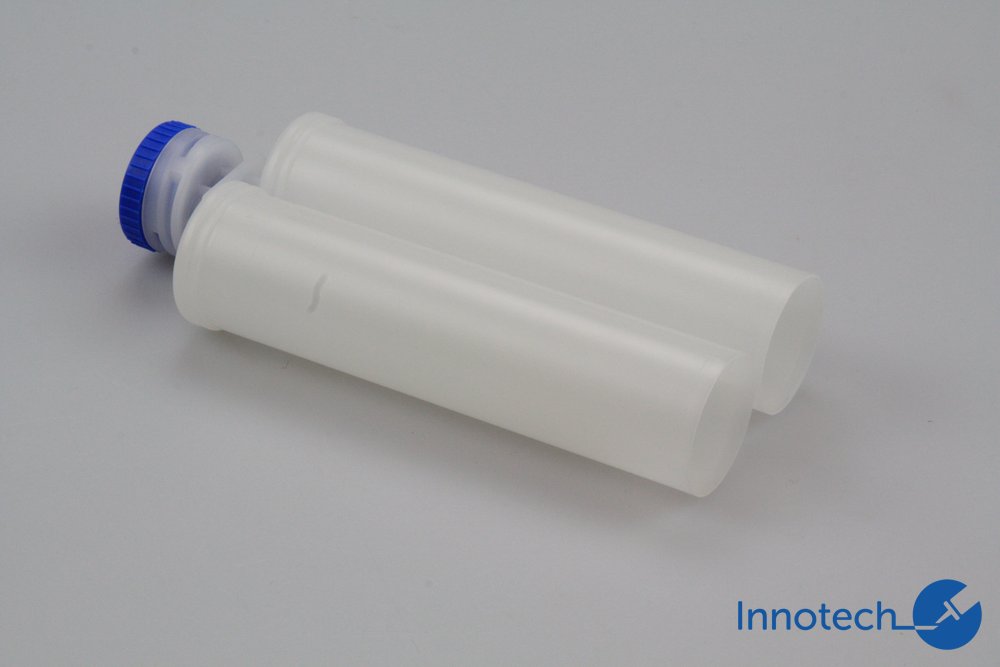

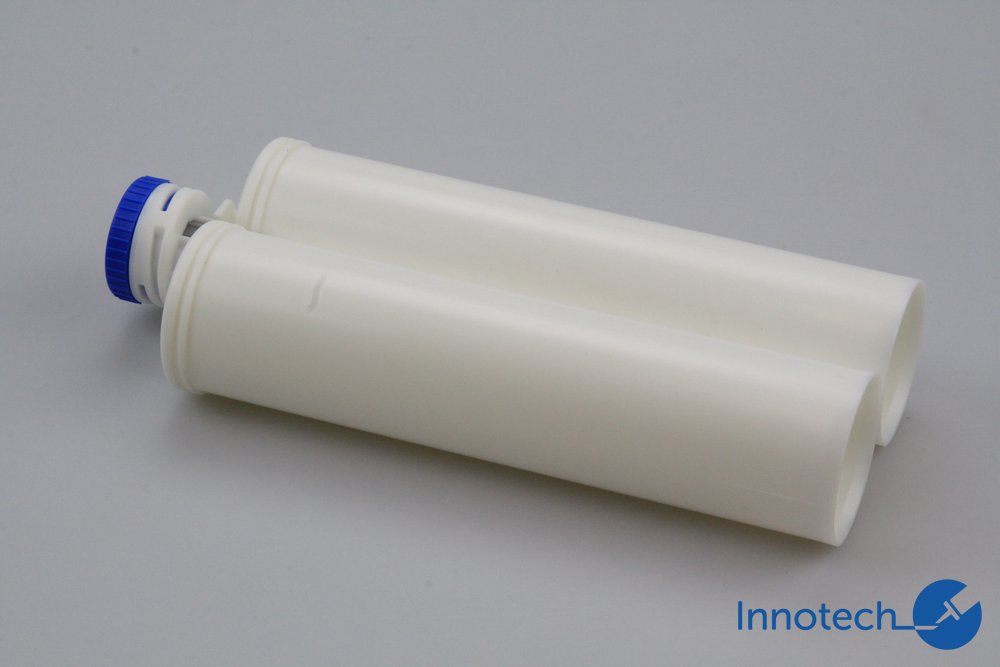

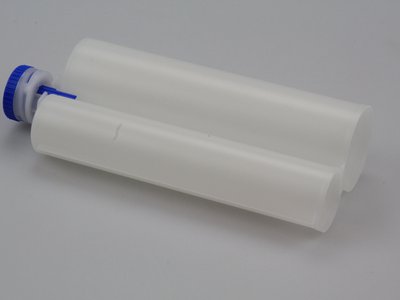

The 2C ACF empty cartridges 200-490ml by Ritter GmbH are side by side cartridges and are ideal for the use of 2C adhesives and sealants. The cartridges are available in standard fill quantities from 200ml to 490ml. Ritter GmbH has established itself as a leading manufacturer of 2-component empty cartridges and static mixers over the decades. The new range of ACF-coded empty cartridges has been developed to meet the constantly increasing requirements in precision, safety, and productivity associated with adhesive technology. "ACF" stands for air-free, cross-contamination-free empty cartridges. The ACF empty cartridges are complemented by specially developed high-performance mixing nozzles.
| Manufacturer: | Ritter GmbH |
| Packaging Type: | Side by Side - Cartridge |
| Components: | 2C |
| Connection: | Ritter-System from 200ml |

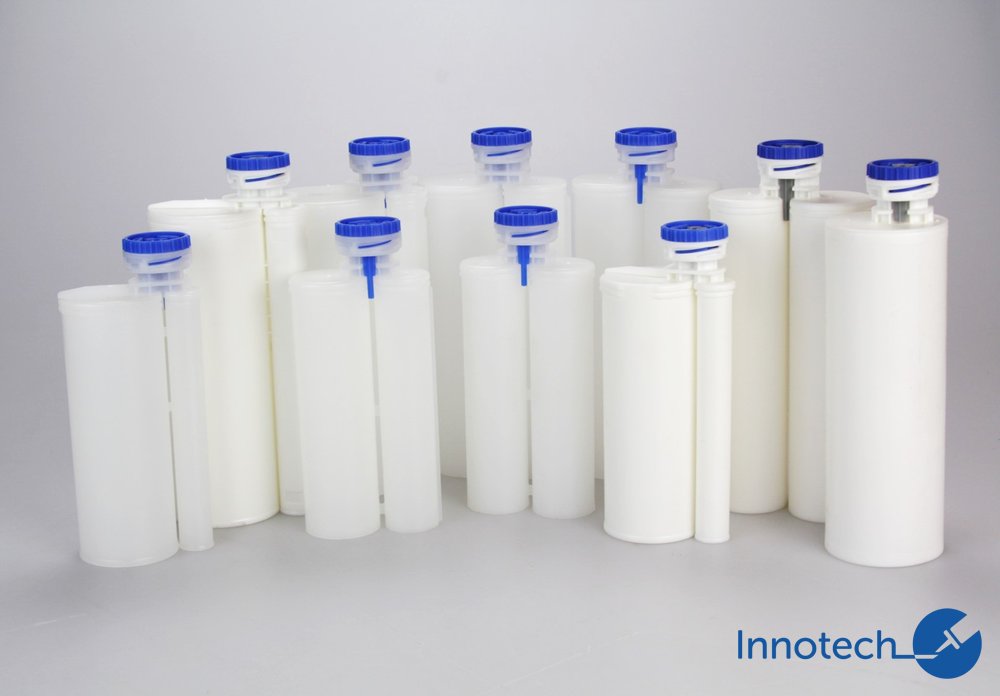

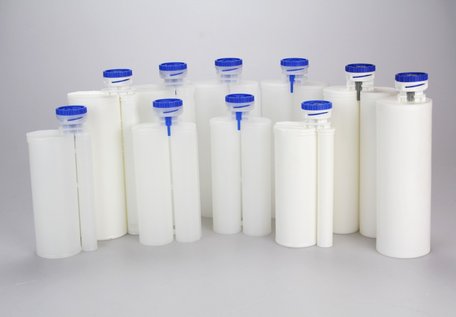

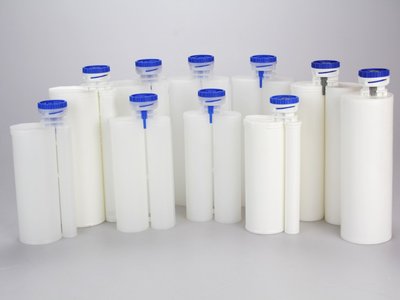

Variants of 2C ACF cartridges 200-490ml
| Variante | Capacity | Material | Mixture Ratios | Length | ⌀ A | ⌀ B | Color | Art.-No. | |
|---|---|---|---|---|---|---|---|---|---|
| ACF 200 cartridge 1:1 PP | Capacity: 200ml | Material: PP | Mixture Ratios: 1:1 | Length: 148mm | Diameter A: 33mm | Diameter B: 33mm | Color: white | Art.-No.: ITR2160 | |
| ACF 200 cartridge 2:1 PP | Capacity: 200ml | Material: PP | Mixture Ratios: 2:1 | Length: 148mm | Diameter A: 39mm | Diameter B: 27mm | Color: white | Art.-No.: ITR2161 | |

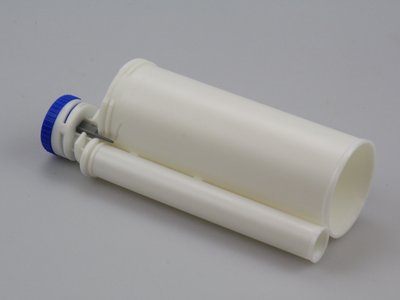

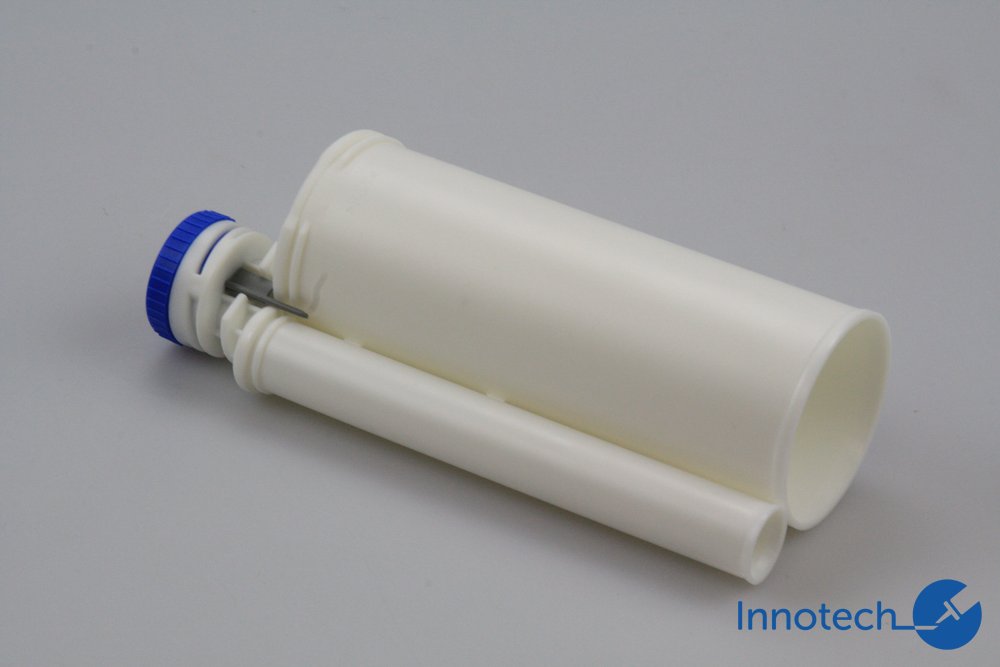

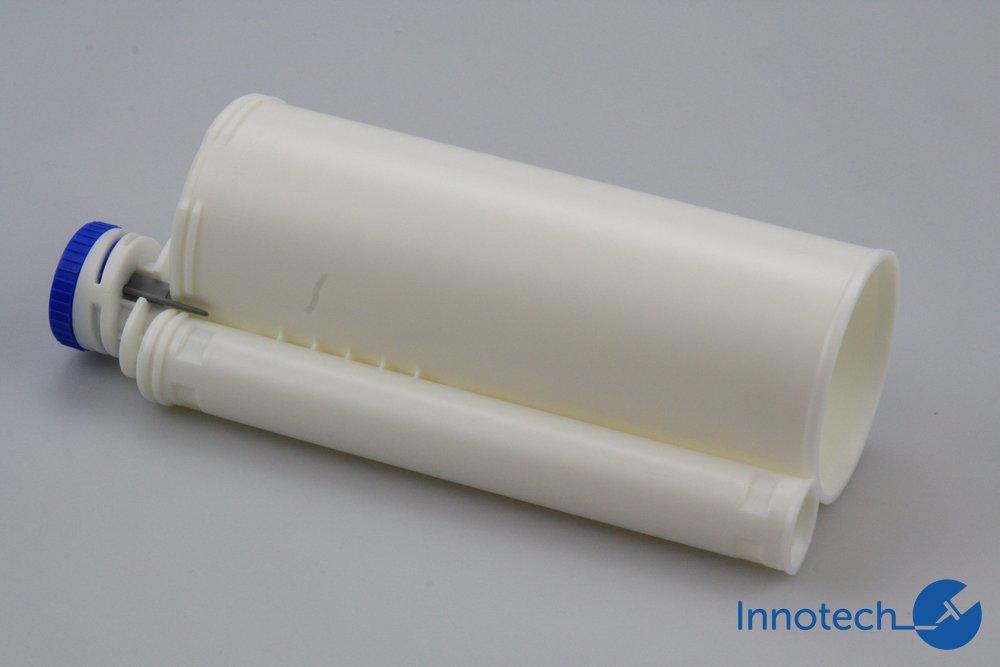

| ACF 250 cartridge 10:1 PBT | Capacity: 250ml | Material: PBT | Mixture Ratios: 10:1 | Length: 147mm | Diameter A: 50mm | Diameter B: 16mm | Color: white | Art.-No.: ITR2163 | |
| ACF 250 cartridge 10:1 PP | Capacity: 250ml | Material: PP | Mixture Ratios: 10:1 | Length: 147mm | Diameter A: 50mm | Diameter B: 16mm | Color: white | Art.-No.: ITR2162 | |
| ACF 400 cartridge 1:1 PBT | Capacity: 400ml | Material: PBT | Mixture Ratios: 1:1 | Length: 185mm | Diameter A: 40mm | Diameter B: 40mm | Color: white | Art.-No.: ITR2165 | |
| ACF 400 cartridge 1:1 PP | Capacity: 400ml | Material: PP | Mixture Ratios: 1:1 | Length: 185mm | Diameter A: 40mm | Diameter B: 40mm | Color: white | Art.-No.: ITR2164 | |
| ACF 400 cartridge 2:1 PA | Capacity: 400ml | Material: PA | Mixture Ratios: 2:1 | Length: 185mm | Diameter A: 47mm | Diameter B: 33mm | Color: white | Art.-No.: ITR2167 | |
| ACF 400 cartridge 2:1 PP | Capacity: 400ml | Material: PP | Mixture Ratios: 2:1 | Length: 185mm | Diameter A: 47mm | Diameter B: 33mm | Color: white | Art.-No.: ITR2166 | |
| ACF 490 cartridge 10:1 PBT | Capacity: 490ml | Material: PBT | Mixture Ratios: 10:1 | Length: 184mm | Diameter A: 61mm | Diameter B: 20mm | Color: white | Art.-No.: ITR2169 | |
| ACF 490 cartridge 10:1 PP | Capacity: 490ml | Material: PP | Mixture Ratios: 10:1 | Length: 184mm | Diameter A: 61mm | Diameter B: 20mm | Color: white | Art.-No.: ITR2168 |
