nordson
Static Mixer Series 260
Nordson

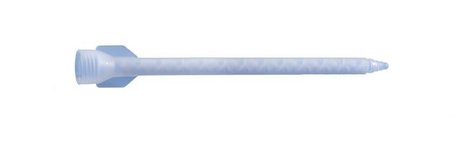

Static Mixer Series 260
The Static Mixers Series 260 from Nordson Deutschland GmbH are perfect for dispensing 2C adhesives and sealants. The mixers can be used with cartridges with threaded connections and are available in various sizes from 8.5 mm (0.355”) to 20.0 mm (0.789”). The Nordson Spiral Mixers / Static Mixers Series 260 are ideal for applications with bell connection or integral mixer. Thanks to their high-quality construction and precise mixing performance, they are the perfect solution for your adhesive technology needs.
| Manufacturer: | Nordson Deutschland GmbH |
| Connection: | Threaded connection |
Variants of Static Mixer Series 260
| Variant | Application Type | Mix Cycles | Mixture Ratios | Tip | Ø | Length | Art.-No. | |
|---|---|---|---|---|---|---|---|---|
| Spiral mixer 260N-805 | Application Type: Bead Application | Mix Cycles: 5 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: conical | Diameter: 9mm | Length: 124mm | Art.-No.: ITR2086 | |
| Spiral mixer 261-212 | Application Type: Bead Application | Mix Cycles: 12 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 13mm | Length: 170mm | Art.-No.: ITR2296 | |
| Spiral mixer 261-218BL | Application Type: Bead Application | Mix Cycles: 18 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: ribbed | Diameter: 13mm | Length: 358mm | Art.-No.: ITR2290 | |
| Spiral mixer 261-224 | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 13mm | Length: 297mm | Art.-No.: ITR2088 | |
| Spiral mixer 261-AN-218 | Application Type: Bead Application | Mix Cycles: 18 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 13mm | Length: 244mm | Art.-No.: ITR2027 | |
| Spiral mixer 262-620-01 | Application Type: Bead Application | Mix Cycles: 20 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: open | Diameter: 20mm | Length: 396mm | Art.-No.: ITR2293 |
