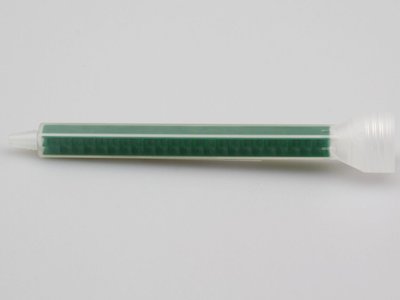

Threaded Connection Quadro Mixer 1:1/2:1
Mixpac™
Threaded Connection Quadro Mixer 1:1/2:1
The threaded connection Quadromixer 1:1/2:1 from medmix Switzerland AG are perfect for dispensing 2C adhesives and sealants. The static mixers can be used with cartridges featuring a threaded connection. Thanks to the precise mixing of the components, they allow for efficient application in adhesive technology.
| Manufacturer: | medmix Switzerland AG |
| Connection: | Threaded connection |
Variants of Threaded Connection Quadro Mixer 1:1/2:1
| Variant | Application Type | Mix Cycles | Mixture Ratios | Tip | Ø | Length | Art.-No. | |
|---|---|---|---|---|---|---|---|---|

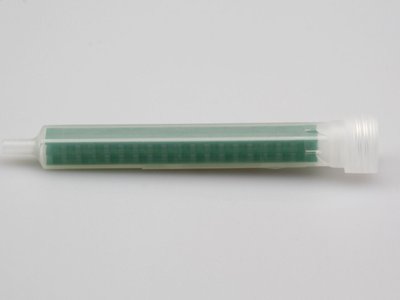

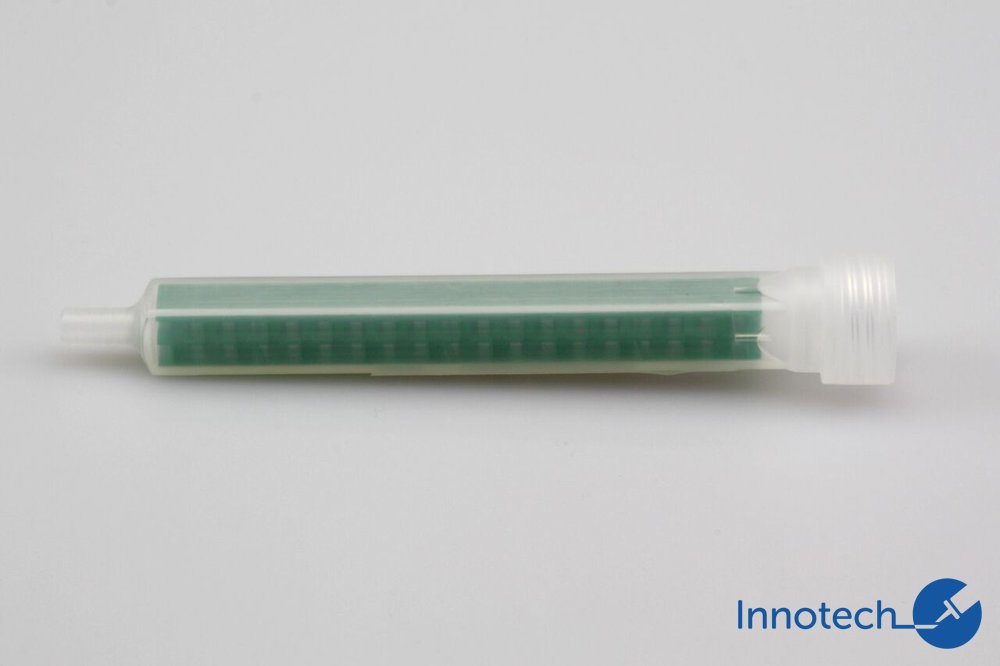

| MGQ 08-18T | Application Type: Bead Application | Mix Cycles: 18 | Mixture Ratios: 1:1, 2:1 | Tip: stepped | Diameter: 8mm | Length: 129mm | Art.-No.: ITR1129 | |

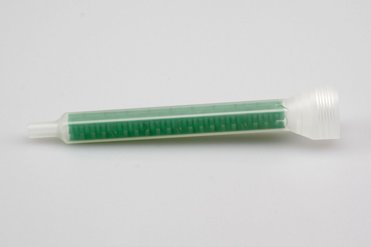

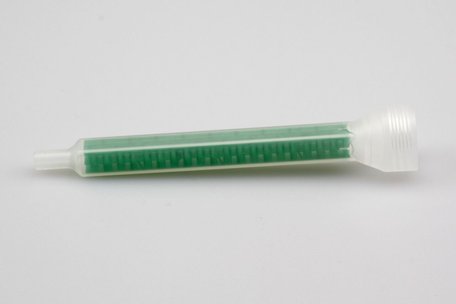

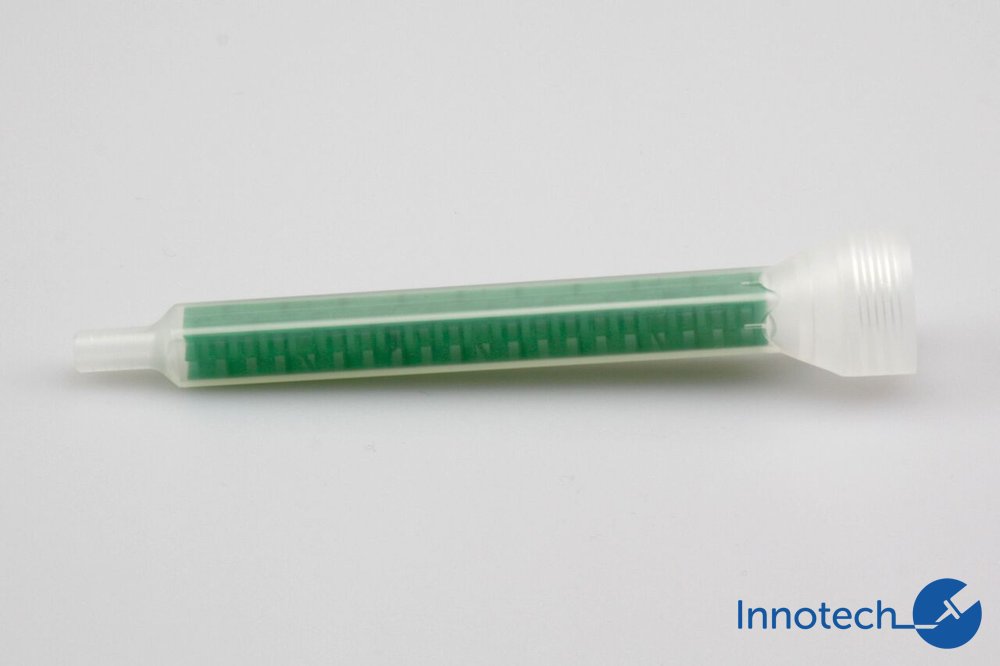

| MGQ 08-20D | Application Type: Bead Application | Mix Cycles: 20 | Mixture Ratios: 1:1, 2:1 | Tip: straight | Diameter: 8mm | Length: 142mm | Art.-No.: ITR1062 | |

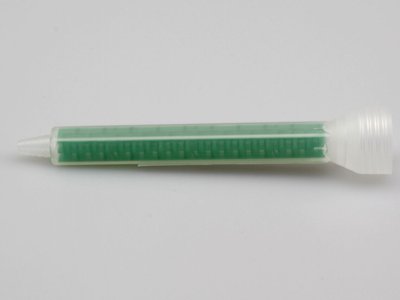

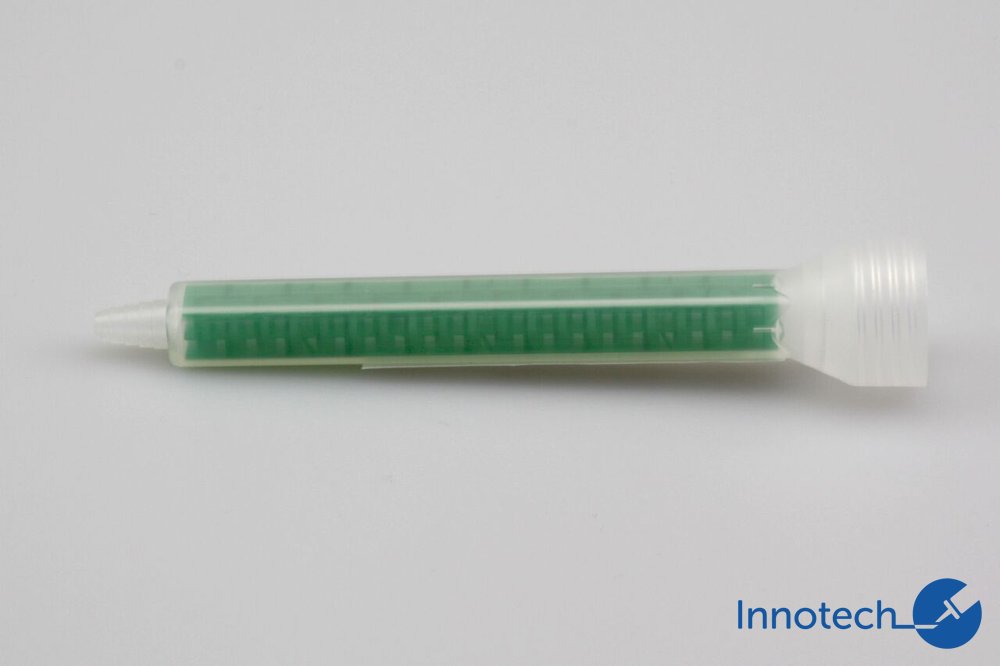

| MGQ 08-20T | Application Type: Bead Application | Mix Cycles: 20 | Mixture Ratios: 1:1, 2:1 | Tip: stepped | Diameter: 8mm | Length: 142mm | Art.-No.: ITR1133 | |

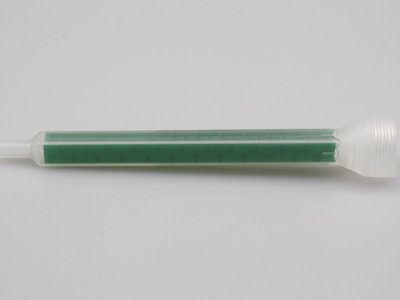

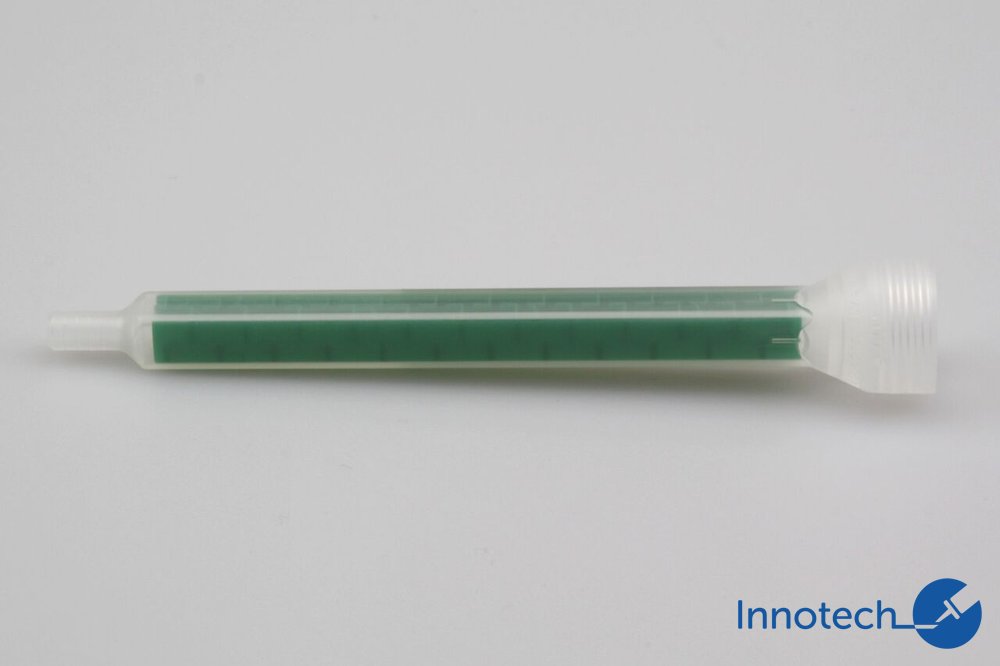

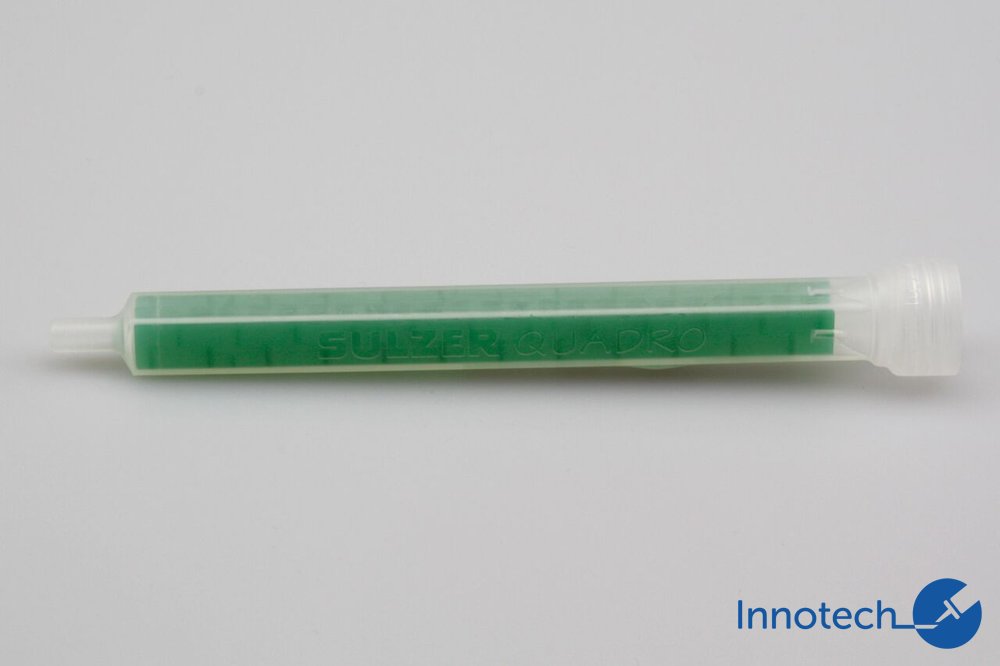

| MGQ 08-24D | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 1:1, 2:1 | Tip: straight | Diameter: 8mm | Length: 161mm | Art.-No.: ITR1056 | |

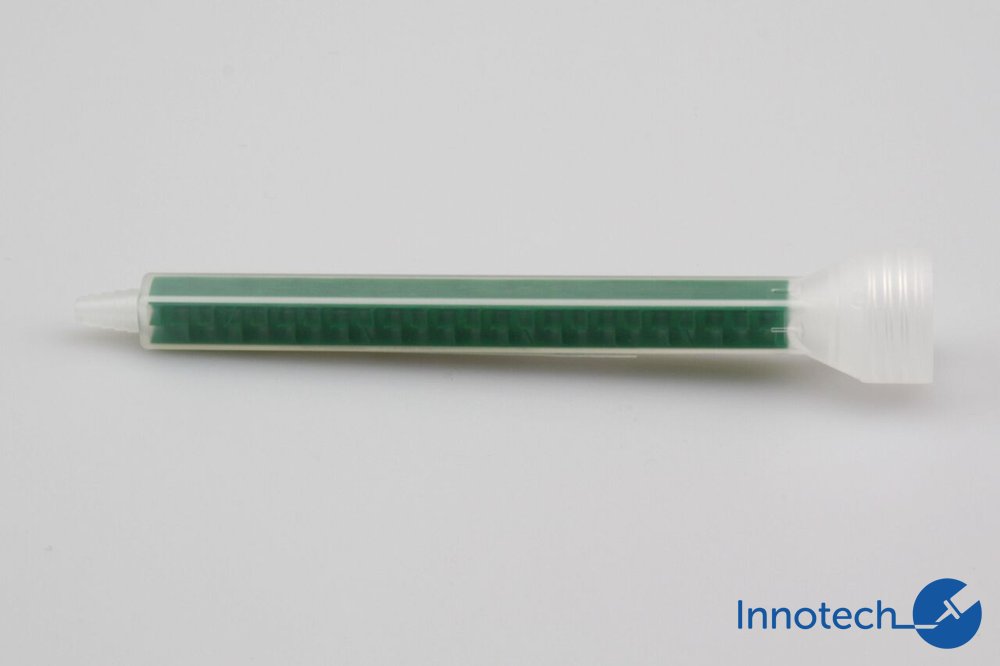

MGQ 08-24T  | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 1:1, 2:1 | Tip: stepped | Diameter: 8mm | Length: 161mm | Art.-No.: ITR1051 | |
| MGQ 10-19A | Application Type: Bead Application | Mix Cycles: 19 | Mixture Ratios: 1:1, 2:1 | Tip: straight | Diameter: 10mm | Length: 158mm | Art.-No.: ITR2028 | |
| MGQ 10-19D | Application Type: Bead Application | Mix Cycles: 19 | Mixture Ratios: 1:1, 2:1 | Tip: straight | Diameter: 10mm | Length: 158mm | Art.-No.: ITR1494 | |
| MGQ 10-24D | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 1:1, 2:1 | Tip: straight | Diameter: 10mm | Length: 187mm | Art.-No.: ITR1336 | |
| MGQ 10-16D | Application Type: Bead Application | Mix Cycles: 16 | Mixture Ratios: 1:1, 2:1 | Tip: straight | Diameter: 10mm | Length: 158mm | Art.-No.: ITR4222 |
