sulzer
F-System Quadro Mixer 4:1/10:1
Mixpac™
F-System Quadro Mixer 4:1/10:1
The F-System Quadromixer 4:1/10:1 from medmix Switzerland AG are perfect for dispensing 2C adhesives and sealants. The static mixers can be used with cartridges featuring an F-System Mixpac™ connection. Thanks to this innovative technology, you can work with precision and efficiency to achieve optimal results in adhesive technology. The high-quality materials and precise manufacturing ensure reliable performance and a long service life.
| Manufacturer: | medmix Switzerland AG |
| Connection: | F-System Mixpac™ |
Variants of F-System Quadro Mixer 4:1/10:1
| Variant | Application Type | Mix Cycles | Mixture Ratios | Tip | Ø | Length | Art.-No. | |
|---|---|---|---|---|---|---|---|---|

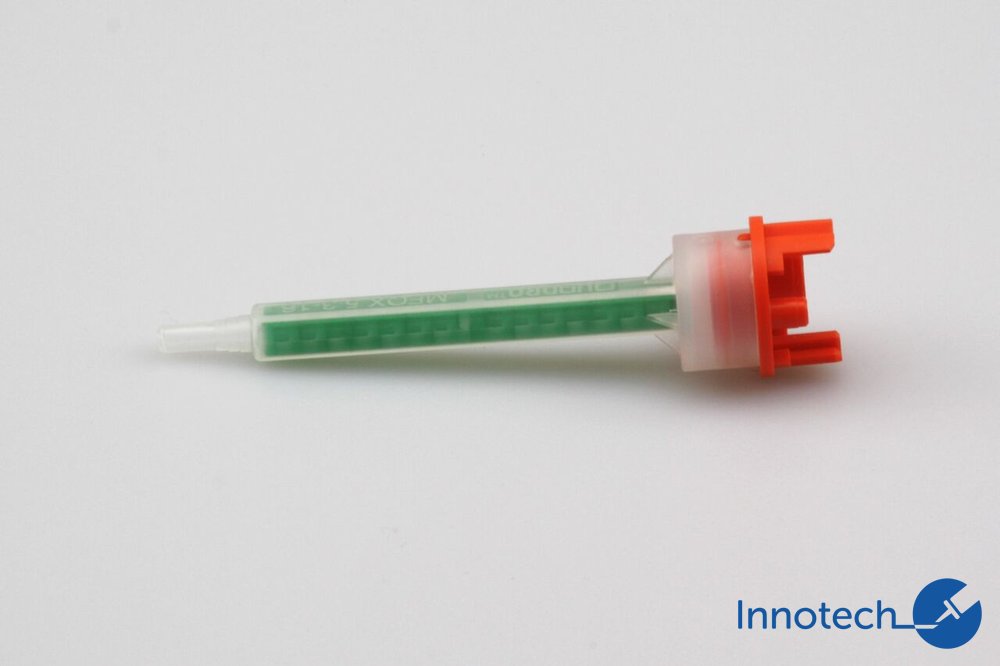

MFQX 05-16L  | Application Type: Bead Application | Mix Cycles: 16 | Mixture Ratios: 4:1, 10:1 | Tip: Luer-Lock | Diameter: 5mm | Length: 101mm | Art.-No.: ITR1071 | |

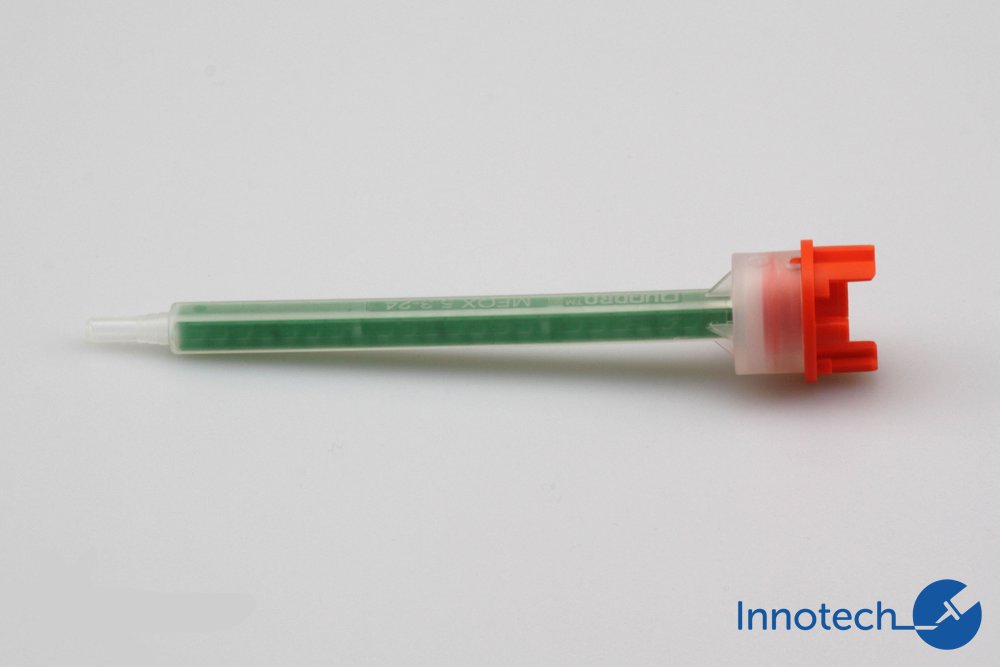

| MFQX 05-24L | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 4:1, 10:1 | Tip: Luer-Lock | Diameter: 5mm | Length: 132mm | Art.-No.: ITR1072 | |
| MFQX 07-24T | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 4:1, 10:1 | Tip: stepped | Diameter: 7mm | Length: 137mm | Art.-No.: ITR1389 | |
| MFQX 08-24T | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 4:1, 10:1 | Tip: stepped | Diameter: 8mm | Length: 155mm | Art.-No.: ITR1069 | |
| MFQX 08-32D | Application Type: Bead Application | Mix Cycles: 32 | Mixture Ratios: 4:1, 10:1 | Tip: straight | Diameter: 8mm | Length: 198mm | Art.-No.: ITR1318 | |
| MFQX 10-24T | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 4:1, 10:1 | Tip: stepped | Diameter: 10mm | Length: 181mm | Art.-No.: ITR1070 |
