ritter

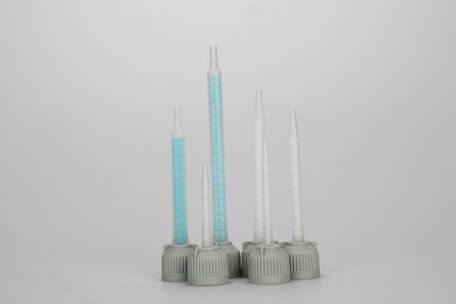

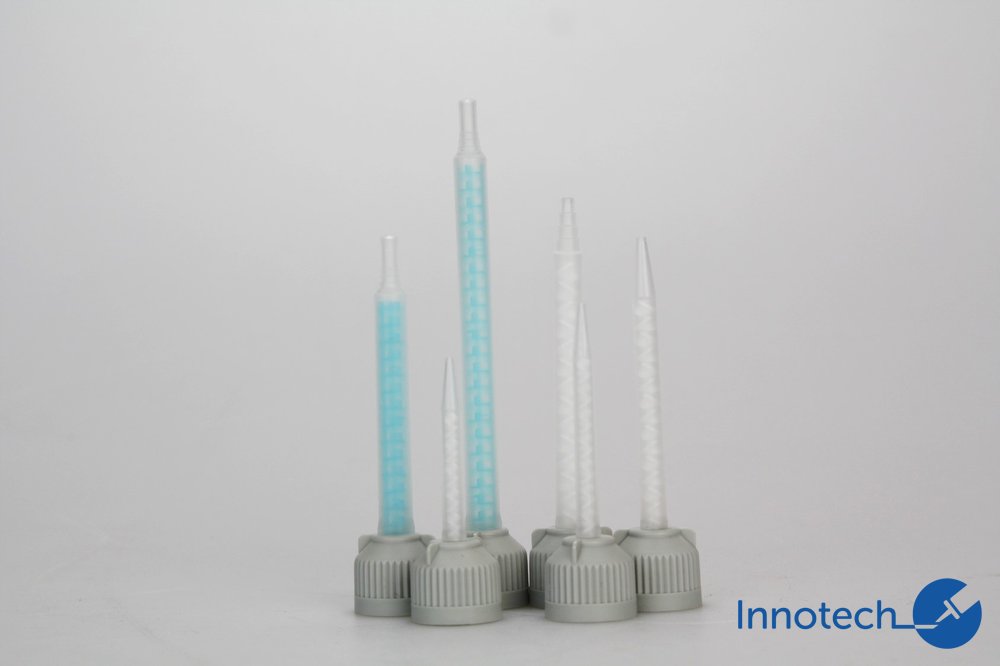

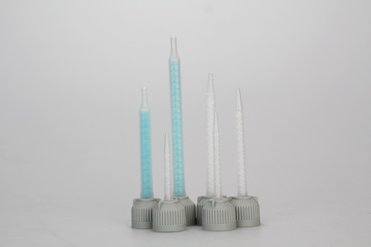

ACF-System Orbis Mixer 50ml
Ritter
ACF-System Orbis Mixer 50ml
The ACF-System Orbital Mixer 50ml from Ritter GmbH are perfect for dispensing 2C adhesives and sealants. The static mixers can be used with cartridges featuring a Ritter-System 50ml connection. Thanks to their precise mixing technology, they ensure an even distribution of the components, guaranteeing reliable adhesive technology. The compact cartridges allow for easy handling and precise dosing of adhesives and sealants. Trust in the quality and efficiency of the ACF-System Orbital Mixer 50ml for your applications.
Manufacturer: | Ritter GmbH |
Connection: | Ritter-System 50ml |
Variants of ACF-System Orbis Mixer 50ml
Variant | Application Type | Mix Cycles | Mixture Ratios | Tip | Ø | Length | Art.-No. | |
---|---|---|---|---|---|---|---|---|
ACF ORBIS 6.0-16 | Application Type: Bead Application | Mix Cycles: 16 | Mixture Ratios: 1:1, 2:1 | Tip: straight | Diameter: 2mm | Length: 83mm | Art.-No.: ITR2175 | |
ACF ORBIS 6.0-24 | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 1:1, 2:1 | Tip: straight | Diameter: 2mm | Length: 114mm | Art.-No.: ITR2191 | |
ACF ORBIS 6.0-16 X | Application Type: Bead Application | Mix Cycles: 16 | Mixture Ratios: 4:1, 10:1 | Tip: straight | Diameter: 2mm | Length: 83mm | Art.-No.: ITR2386 | |
ACF ORBIS 6.0-24 X | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 4:1, 10:1 | Tip: straight | Diameter: 2mm | Length: 114mm | Art.-No.: ITR2387 |
