ritter

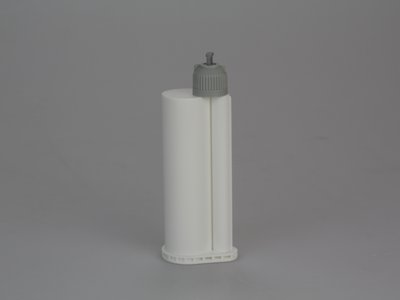

2C ACF 50ml cartridges
Ritter
2C ACF 50ml cartridges

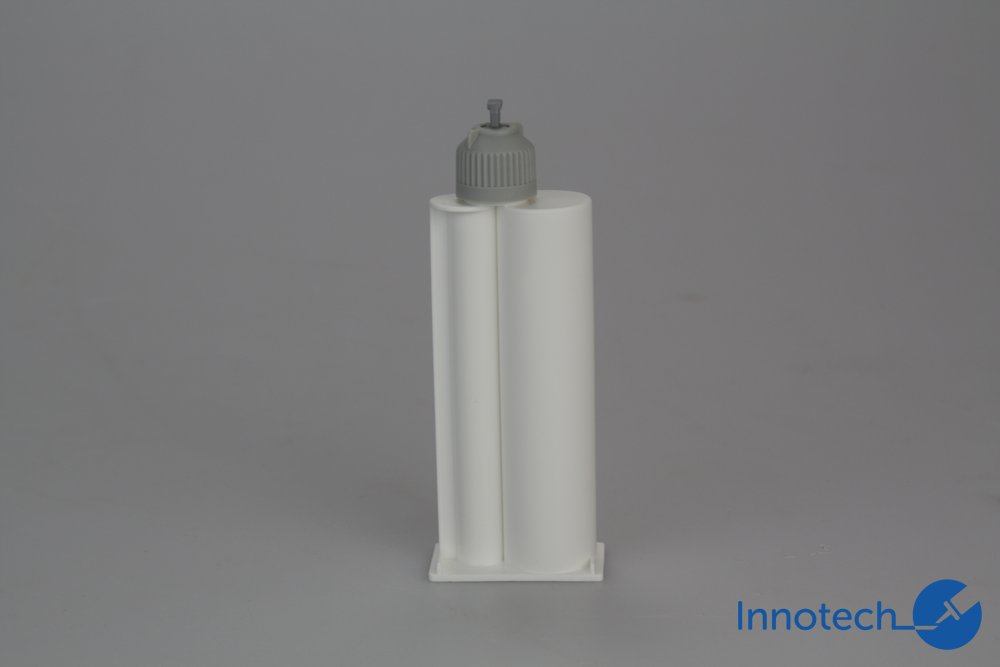

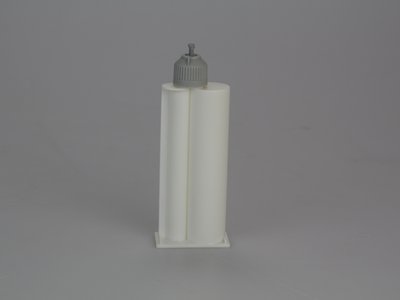

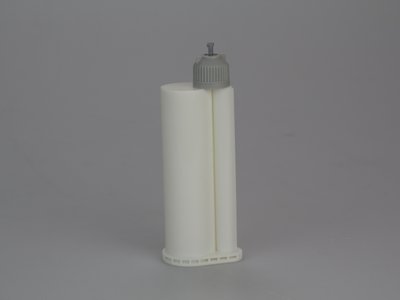

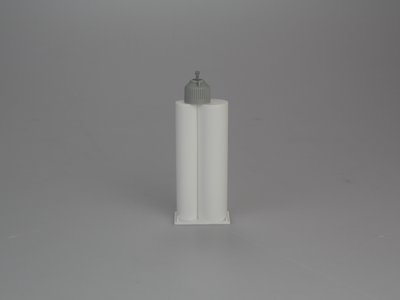

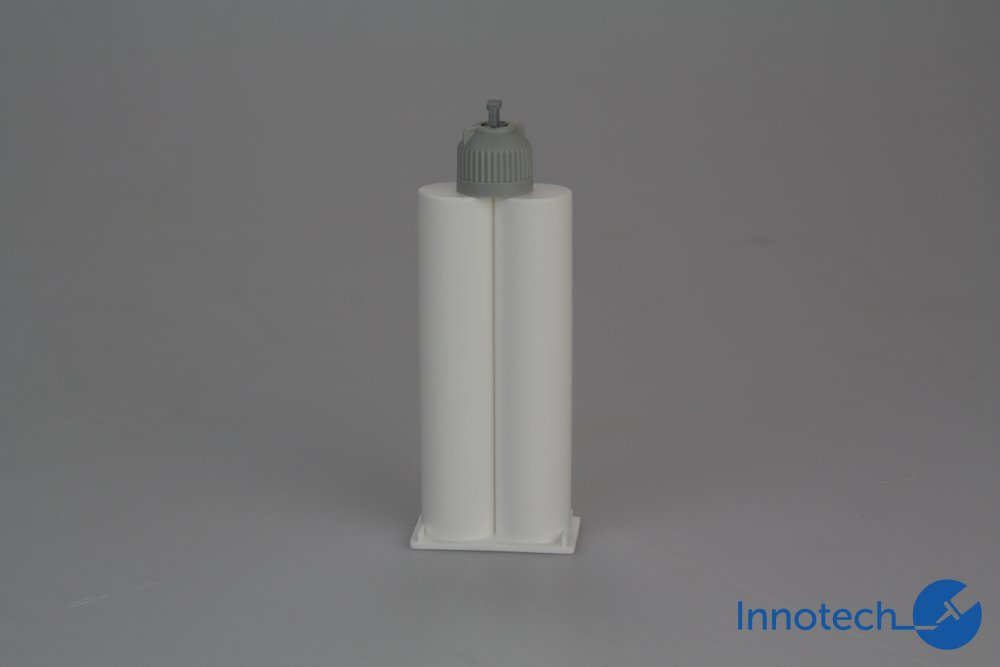

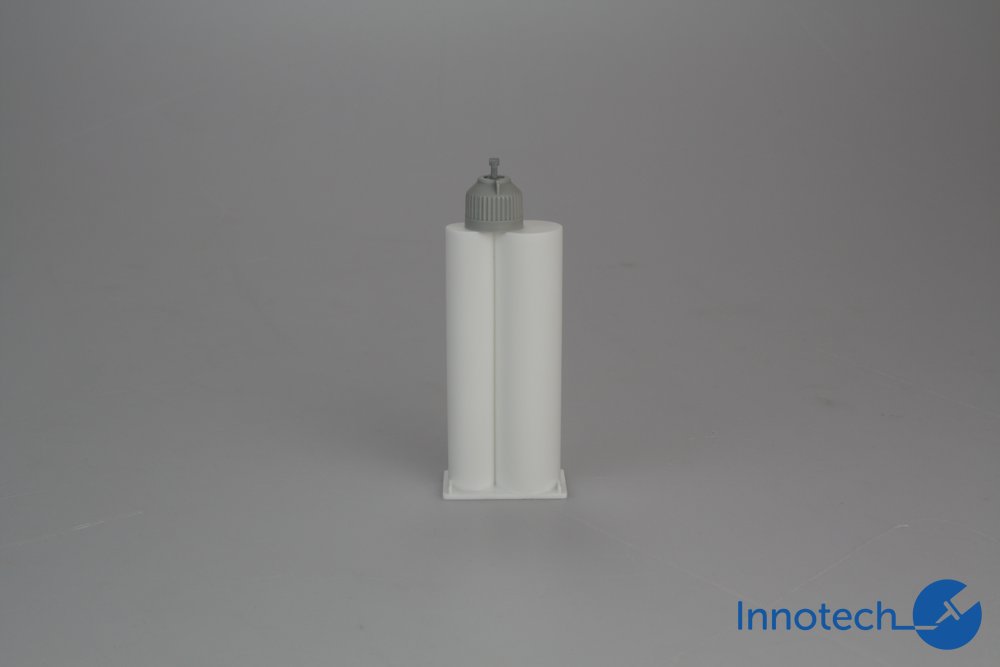

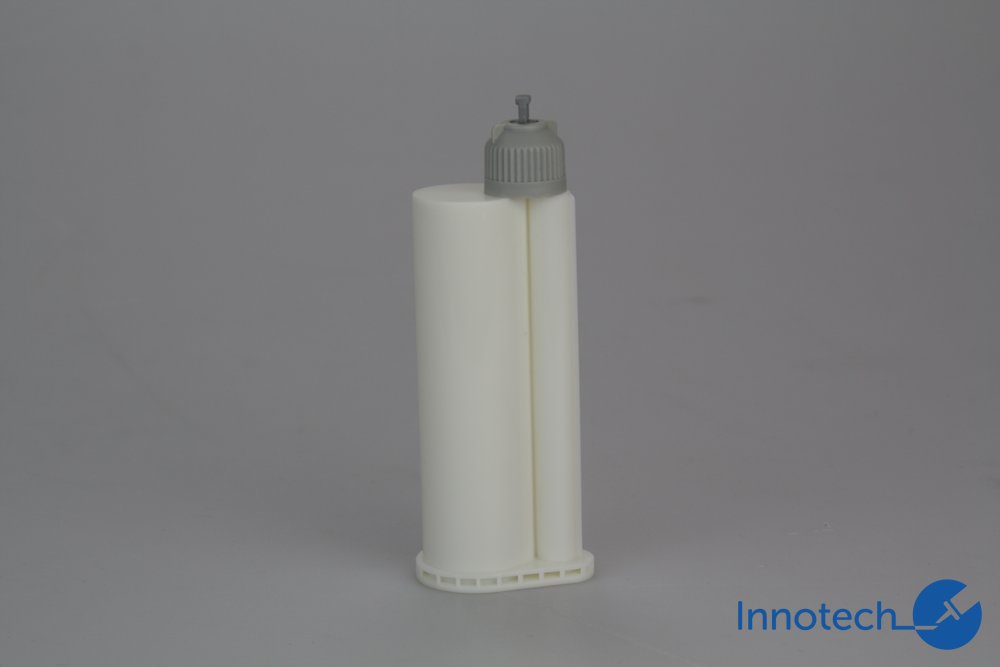

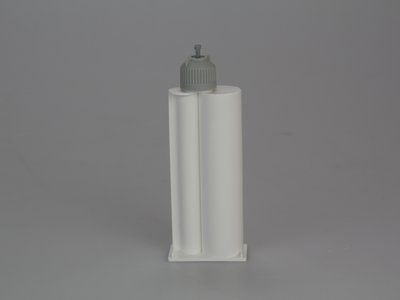

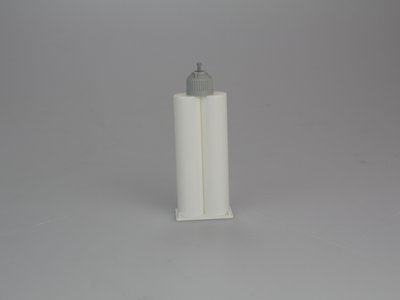

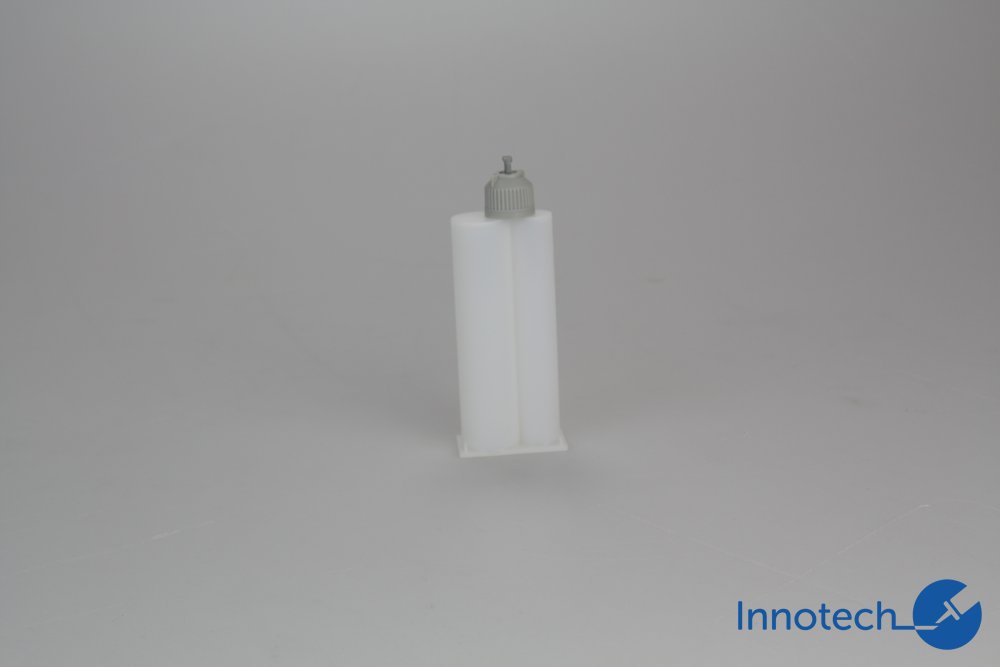

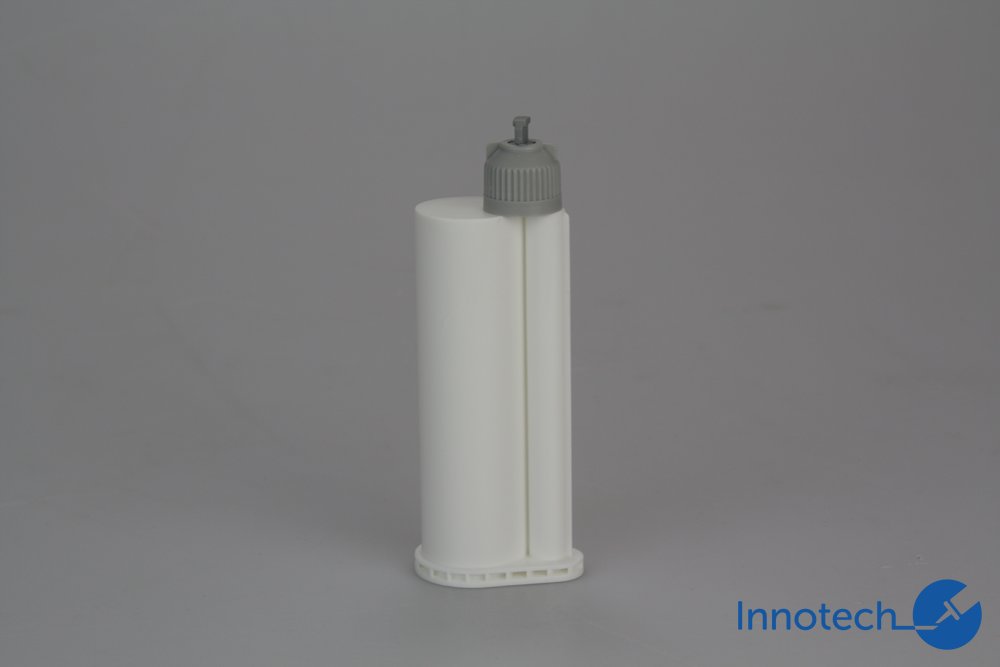

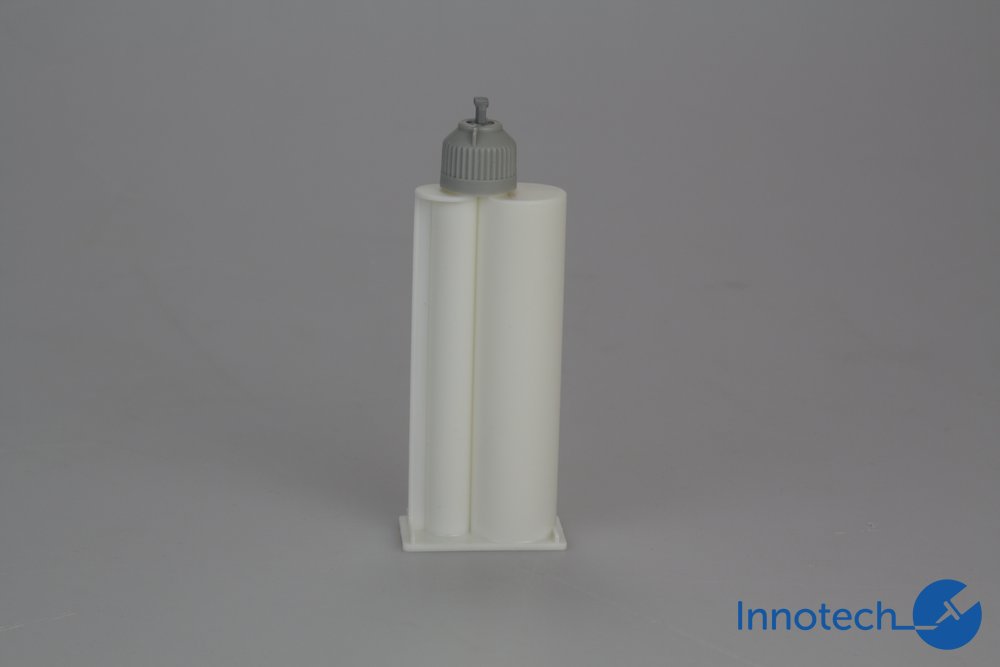

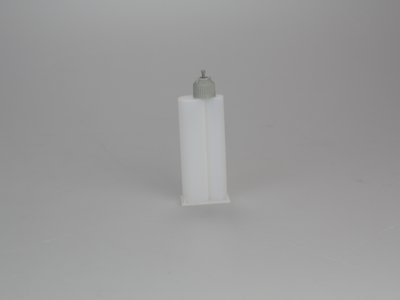

The 2C ACF 50ml empty cartridges by Ritter GmbH are side by side cartridges and are perfect for the use of 2C adhesives and sealants. For dispensing, Ritter-System 50ml connections with static mixers can be used. Ritter GmbH has established itself as a leading manufacturer of 2-component empty cartridges and static mixers over the years. The new range of ACF-coded empty cartridges has been developed to meet the constantly increasing demands in precision, safety, and productivity that come with adhesive technology. "ACF" stands for air-free, cross-contamination-free empty cartridges. The ACF empty cartridges are complemented by specially developed high-performance mixing nozzles.
| Manufacturer: | Ritter GmbH |
| Packaging Type: | Side by Side - Cartridge |
| Components: | 2C |
| Connection: | Ritter-System 50ml |

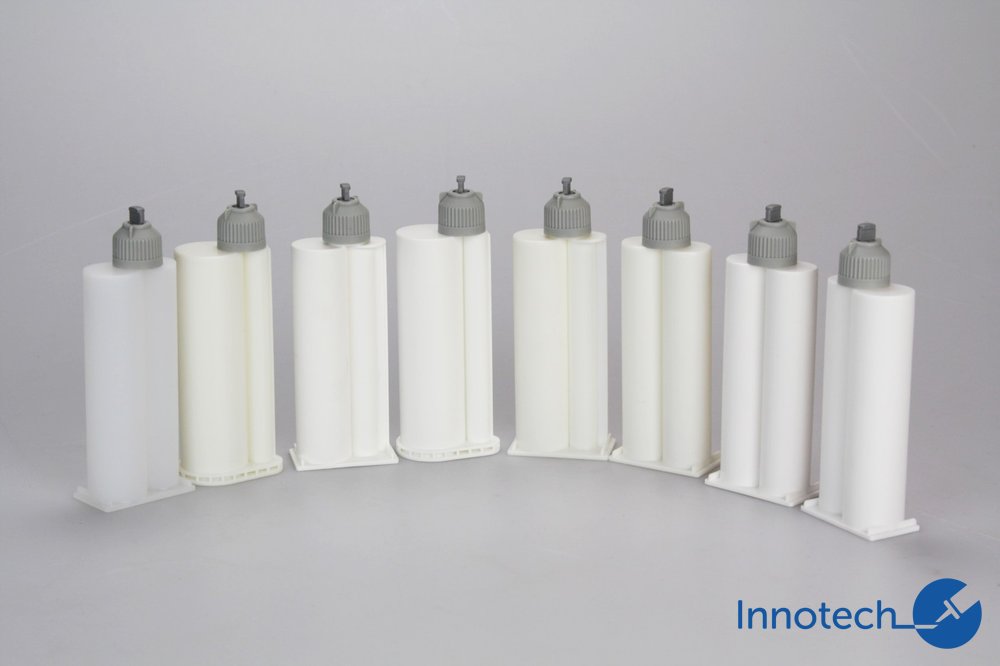

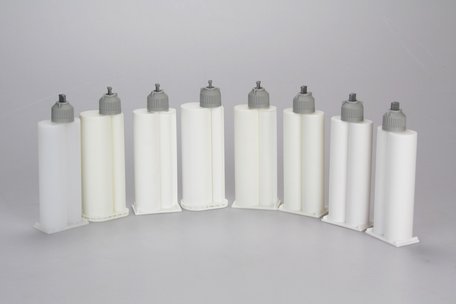

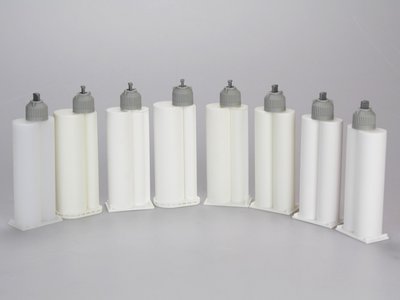

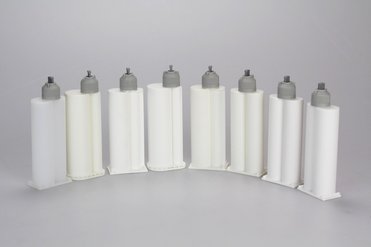

Variants of 2C ACF 50ml cartridges
| Variante | Capacity | Material | Mixture Ratios | Length | ⌀ A | ⌀ B | Color | Art.-No. | |
|---|---|---|---|---|---|---|---|---|---|
| ACF 50 cartridge 10:1 PBT | Capacity: 50ml | Material: PBT | Mixture Ratios: 10:1 | Length: 102mm | Diameter A: 26mm | Diameter B: 8mm | Color: white | Art.-No.: ITR2158 | |
| ACF 50 cartridge 10:1 PP | Capacity: 50ml | Material: PP | Mixture Ratios: 10:1 | Length: 102mm | Diameter A: 26mm | Diameter B: 8mm | Color: white | Art.-No.: ITR2159 | |
| ACF 50 cartridge 1:1 PBT | Capacity: 50ml | Material: PBT | Mixture Ratios: 1:1 | Length: 100mm | Diameter A: 19mm | Diameter B: 19mm | Color: white | Art.-No.: ITR2152 | |
| ACF 50 cartridge 1:1 PP | Capacity: 50ml | Material: PP | Mixture Ratios: 1:1 | Length: 100mm | Diameter A: 19mm | Diameter B: 19mm | Color: white | Art.-No.: ITR2153 | |
| ACF 50 cartridge 2:1 PA | Capacity: 50ml | Material: PA | Mixture Ratios: 2:1 | Length: 100mm | Diameter A: 23mm | Diameter B: 16mm | Color: white | Art.-No.: ITR2154 | |
| ACF 50 cartridge 2:1 PP | Capacity: 50ml | Material: PP | Mixture Ratios: 2:1 | Length: 100mm | Diameter A: 23mm | Diameter B: 16mm | Color: white | Art.-No.: ITR2155 | |
| ACF 50 cartridge 4:1 PBT | Capacity: 50ml | Material: PBT | Mixture Ratios: 4:1 | Length: 100mm | Diameter A: 22mm | Diameter B: 11mm | Color: white | Art.-No.: ITR2156 | |
| ACF 50 cartridge 4:1 PP | Capacity: 50ml | Material: PP | Mixture Ratios: 4:1 | Length: 100mm | Diameter A: 22mm | Diameter B: 11mm | Color: white | Art.-No.: ITR2157 |
