Battery Dispenser
Axiss
2C e-dispenser
Battery Dispenser
Axiss
2C e-dispenser

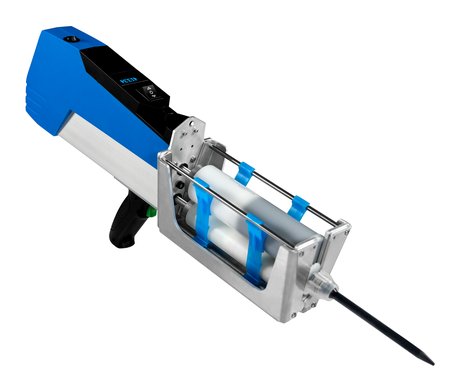

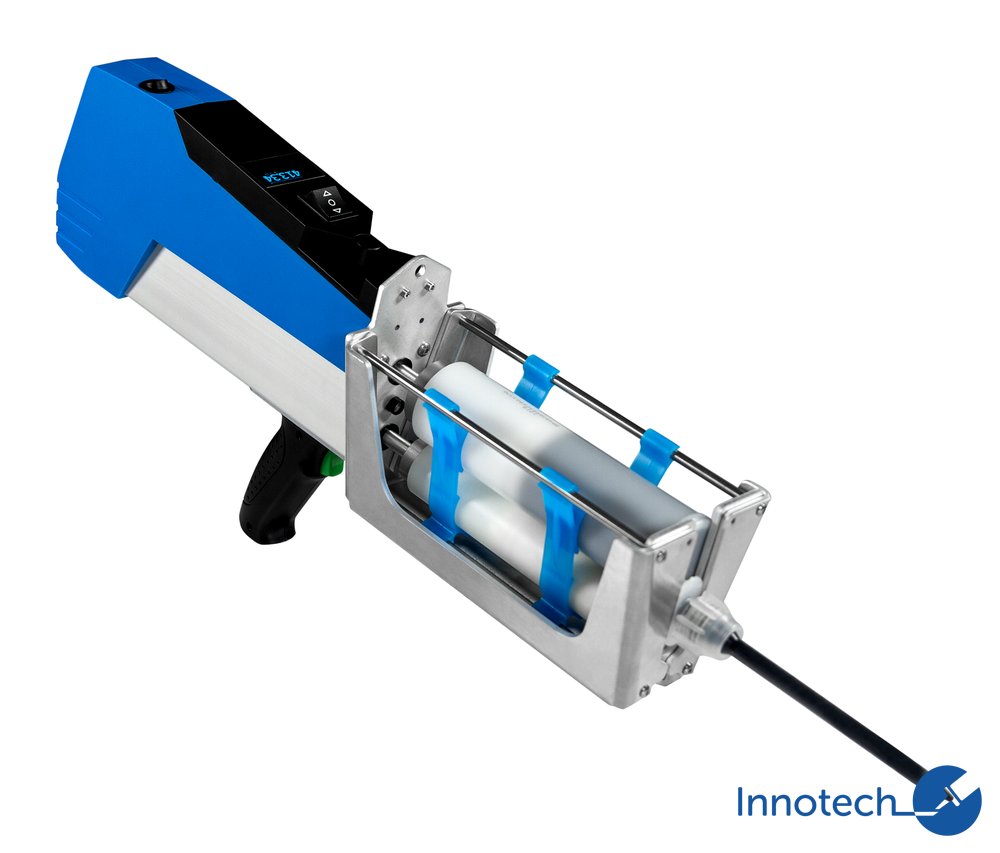

The 2C e-dispenser cartridge press from the German manufacturer Axiss GmbH is equipped with a powerful drive and is ideal for the use of cartridges. It enables precise bonding of 2C adhesives and sealants through a bead application. Spare parts for the cartridge press are available at any time from Innotech. This electric hand gun for dosing from 2C-DUO cartridges is driven by a servo motor with a ball screw. The pistons move parallel to each other, while the mixing ratio is determined by the cartridge geometry. The gun allows for both volume dosing and continuous dosing. A retraction relaxes the material in the cartridge, preventing dripping. Parameters such as dosing quantity and dosing speed can be entered via a potentiometer and pressure button.
| Manufacturer: | Axiss GmbH |
| Origin: | Germany |
| Drive: | Battery |
| Application: | Bead Application |
| Components: | 2C |
| Packaging Groups: | Cartridge |
| Spares: | |
| Service: |
Variants of 2C e-dispenser
| Variant | Capacities | Packagings Types | Power | Mixture Ratios | Voltage | Weight | Art.-No. | |
|---|---|---|---|---|---|---|---|---|

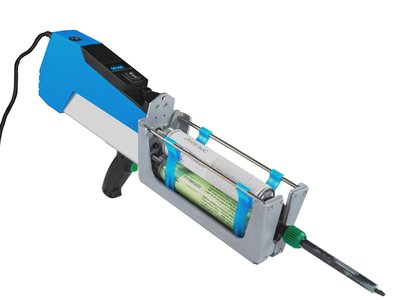

e-dispenser 2xE300 DOW  | Capacities: 620 ml | Packagings Types: Two Cartridges with T-Piece | Power: 5.00 kN | Mixture Ratios: 1:1 | Voltage: 18.00 V | Weight: 4000 g | Art.-No.: AX1002 | |

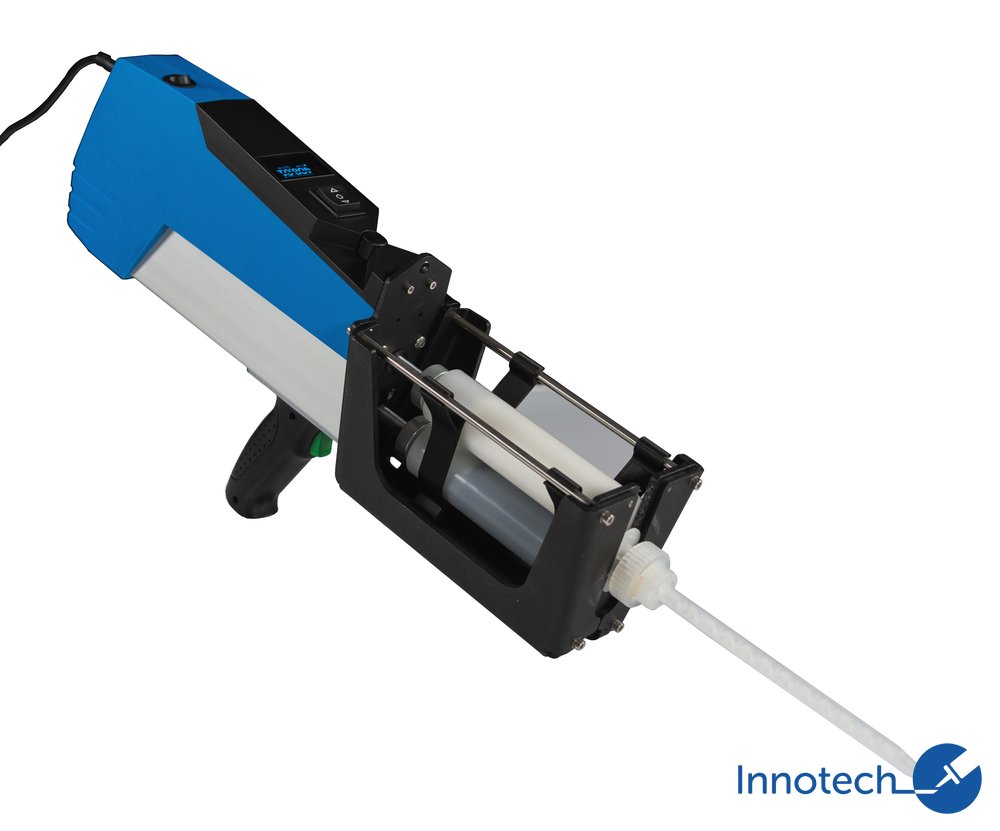

| e-dispenser E200 | Capacities: 210 ml, 215 ml, 225 ml, 247.5 ml | Packagings Types: Side by Side - Cartridge | Power: 5.00 kN | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Voltage: 18.00 V | Weight: 4000 g | Art.-No.: AX1001 | |
| e-dispenser E400 | Capacities: 395 ml, 400 ml, 415 ml, 490 ml | Packagings Types: Side by Side - Cartridge | Power: 5.00 kN | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Voltage: 18.00 V | Weight: 4000 g | Art.-No.: AX1000 |
