nordson
Static Mixer Series 190
Nordson
Static Mixer Series 190

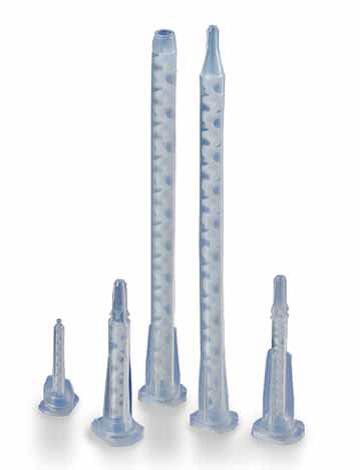

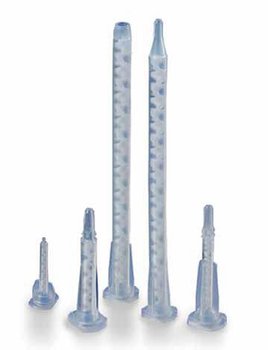

The Static Mixers Series 190 by Nordson Deutschland GmbH are perfect for dispensing 2C adhesives and sealants. The static mixers feature a bayonet system for connection with cartridges. Specifically designed for 50-ml two-component cartridges, the Nordson spiral mixers / static mixers of the Series 190 are ideal for mixing epoxy resins, urethanes, acrylics, and silicones.
| Manufacturer: | Nordson Deutschland GmbH |
| Connection: | Bayonet System |
Variants of Static Mixer Series 190
| Variant | Application Type | Mix Cycles | Mixture Ratios | Tip | Ø | Length | Art.-No. | |
|---|---|---|---|---|---|---|---|---|
| Spiral mixer 190-212 | Application Type: Bead Application | Mix Cycles: 12 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 2mm | Length: 38mm | Art.-No.: ITR2090 | |
| Spiral mixer 190-312H | Application Type: Bead Application | Mix Cycles: 12 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: conical | Diameter: 3mm | Length: 53mm | Art.-No.: ITR2091 | |
| Spiral mixer 190-324H | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: conical | Diameter: 3mm | Length: 86mm | Art.-No.: ITR1891 | |
| Spiral mixer 190-408BT | Application Type: Bead Application | Mix Cycles: 8 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: open | Diameter: 5mm | Length: 41mm | Art.-No.: ITR2038 | |
| Spiral mixer 190-416 | Application Type: Bead Application | Mix Cycles: 16 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 5mm | Length: 86mm | Art.-No.: ITR2039 | |
| Spiral mixer 190-416H | Application Type: Bead Application | Mix Cycles: 16 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: conical | Diameter: 5mm | Length: 86mm | Art.-No.: ITR2040 | |
| Spiral mixer 190-517-01 | Application Type: Bead Application | Mix Cycles: 17 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 5mm | Length: 112mm | Art.-No.: ITR2042 | |
| Spiral mixer 190-521-01 | Application Type: Bead Application | Mix Cycles: 21 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 5mm | Length: 135mm | Art.-No.: ITR2043 | |
| Spiral mixer 190-612 | Application Type: Bead Application | Mix Cycles: 12 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 6mm | Length: 99mm | Art.-No.: ITR2044 | |
| Spiral mixer 190-620 | Application Type: Bead Application | Mix Cycles: 20 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 6mm | Length: 150mm | Art.-No.: ITR2046 | |
| Spiral mixer 190-620-01 | Application Type: Bead Application | Mix Cycles: 20 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 6mm | Length: 150mm | Art.-No.: ITR2047 | |
| Spiral mixer 190-620BT | Application Type: Bead Application | Mix Cycles: 20 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: open | Diameter: 6mm | Length: 135mm | Art.-No.: ITR2048 | |
| Spiral mixer 190-620H | Application Type: Bead Application | Mix Cycles: 20 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: conical | Diameter: 6mm | Length: 150mm | Art.-No.: ITR2049 |
