Static Mixer Series 160 Luer Lock
Nordson
Static Mixer Series 160 Luer Lock

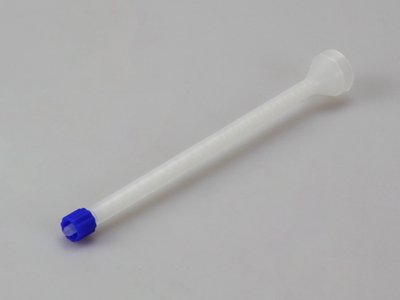

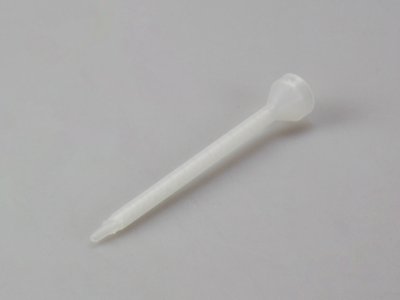

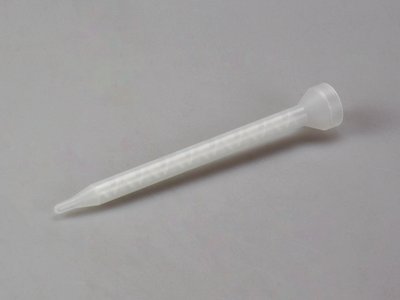

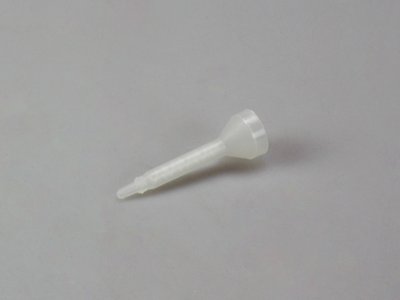

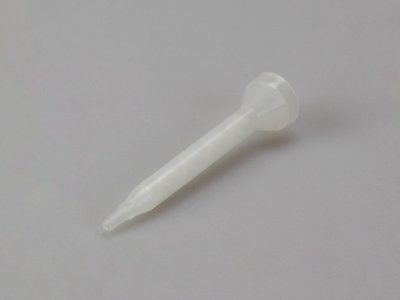

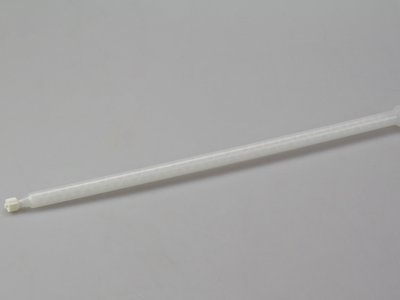

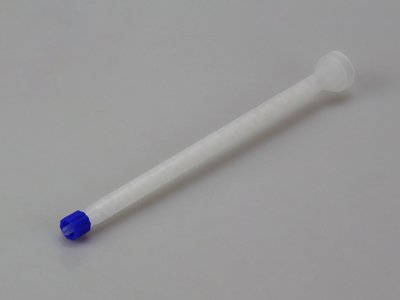

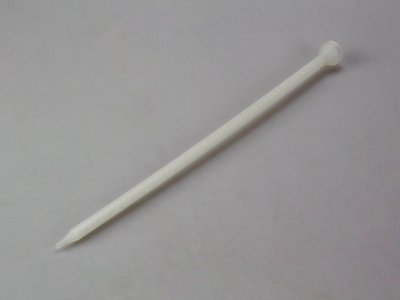

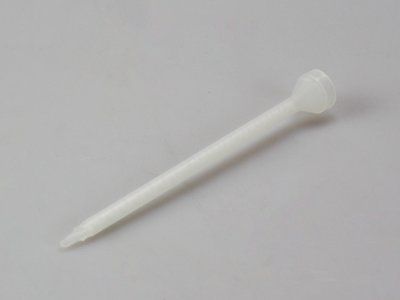

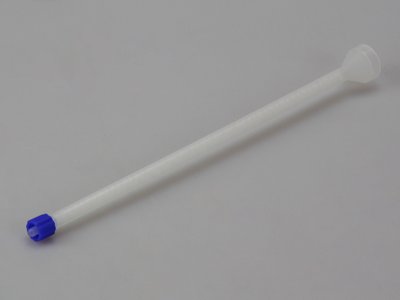

The Static Mixer Series 160 Luer Lock from Nordson Deutschland GmbH are perfect for dispensing 2C adhesives and sealants. These mixers can be used with cartridges featuring a bell connection. Nordson EFD's patented disposable Spiral Mixers™ are based on a proven geometry that ensures thorough mixing of various two-component materials. Mixers with LL at the end come with a blue adapter, while mixers with SH at the end have a modified connection for potential adapter attachment. Mixers without an ending feature a standard Luer tip.
| Manufacturer: | Nordson Deutschland GmbH |
| Connection: | Cup Connection |
Variants of Static Mixer Series 160 Luer Lock
| Variant | Application Type | Mix Cycles | Mixture Ratios | Tip | Ø | Length | Art.-No. | |
|---|---|---|---|---|---|---|---|---|

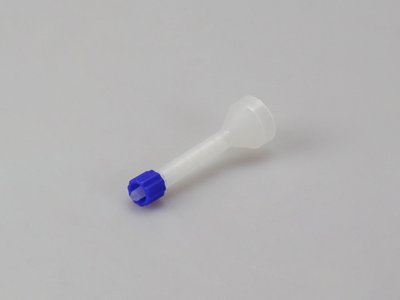

| Spiral mixer 160-408 LL | Application Type: Bead Application | Mix Cycles: 8 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 5mm | Length: 70mm | Art.-No.: ITR2058 | |
| Spiral mixer 160-408 SH | Application Type: Bead Application | Mix Cycles: 8 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 5mm | Length: 70mm | Art.-No.: ITR2057 | |

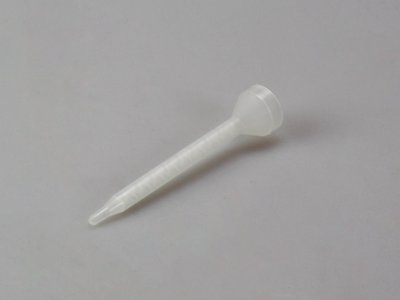

| Spiral mixer 160-416 | Application Type: Bead Application | Mix Cycles: 16 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 5mm | Length: 100mm | Art.-No.: ITR1890 | |

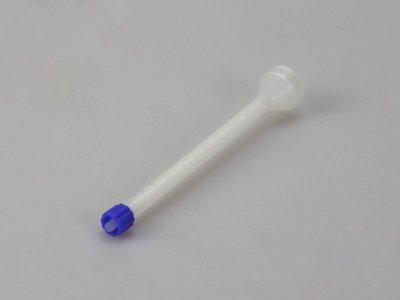

| Spiral mixer 160-424 LL | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 5mm | Length: 130mm | Art.-No.: ITR2060 | |
| Spiral mixer 160-424 SH | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 5mm | Length: 130mm | Art.-No.: ITR2059 | |
| Spiral mixer 160-432 LL | Application Type: Bead Application | Mix Cycles: 32 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 5mm | Length: 160mm | Art.-No.: ITR2062 | |
| Spiral mixer 160-432 SH | Application Type: Bead Application | Mix Cycles: 32 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 5mm | Length: 160mm | Art.-No.: ITR2061 | |

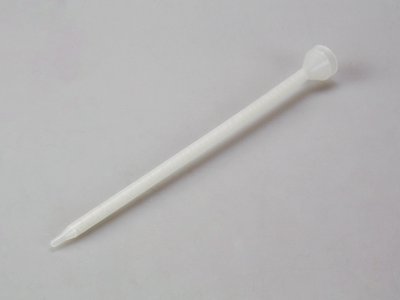

| Spiral mixer 160-448 | Application Type: Bead Application | Mix Cycles: 48 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 5mm | Length: 230mm | Art.-No.: ITR2063 | |
| Spiral mixer 160-448 LL | Application Type: Bead Application | Mix Cycles: 48 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 5mm | Length: 230mm | Art.-No.: ITR1897 | |
| Spiral mixer 160-608 SH | Application Type: Bead Application | Mix Cycles: 8 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 6mm | Length: 90mm | Art.-No.: ITR2065 | |
| Spiral mixer 160-616 | Application Type: Bead Application | Mix Cycles: 16 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 6mm | Length: 138mm | Art.-No.: ITR1865 | |

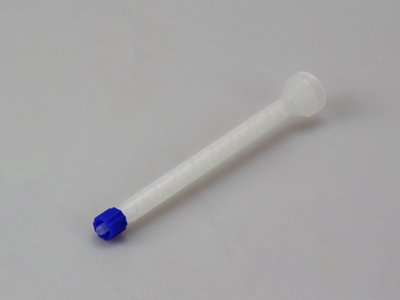

| Spiral mixer 160-616 LL | Application Type: Bead Application | Mix Cycles: 16 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 6mm | Length: 139mm | Art.-No.: ITR2066 | |
| Spiral mixer 160-624 | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 6mm | Length: 189mm | Art.-No.: ITR1253 | |
| Spiral mixer 160-624 LL | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 6mm | Length: 189mm | Art.-No.: ITR1866 | |

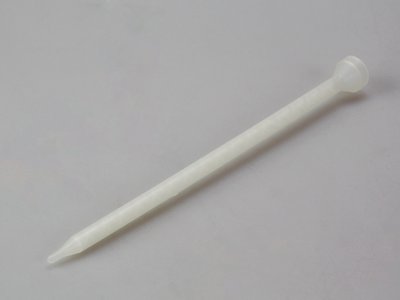

| Spiral mixer 160-632 | Application Type: Bead Application | Mix Cycles: 32 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 6mm | Length: 241mm | Art.-No.: ITR1881 | |

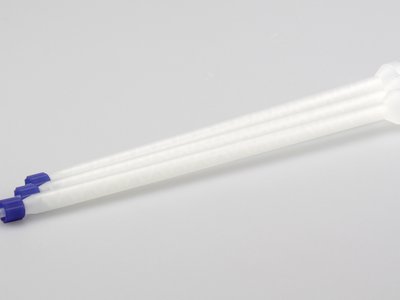

| Spiral mixer 160-632 LL | Application Type: Bead Application | Mix Cycles: 32 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 6mm | Length: 241mm | Art.-No.: ITR1892 | |
| Spiral mixer 160-648 | Application Type: Bead Application | Mix Cycles: 48 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 6mm | Length: 333mm | Art.-No.: ITR1893 | |

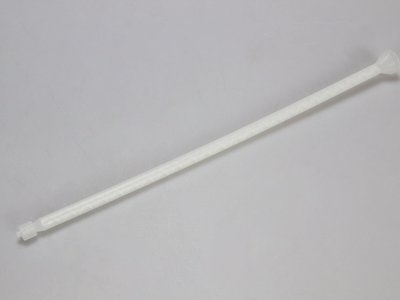

| Spiral mixer 160-648 LL | Application Type: Bead Application | Mix Cycles: 48 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 6mm | Length: 333mm | Art.-No.: ITR1888 | |

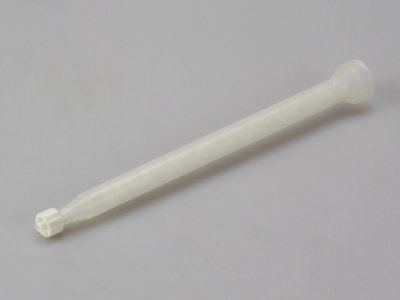

| Spiral mixer 160-718 LL | Application Type: Bead Application | Mix Cycles: 18 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 8mm | Length: 176mm | Art.-No.: ITR2070 | |

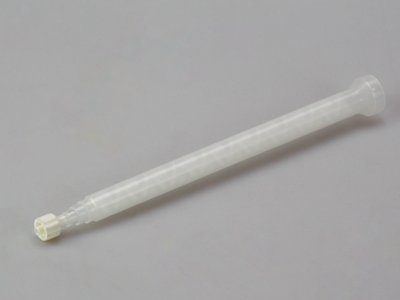

| Spiral mixer 160-818 LL | Application Type: Bead Application | Mix Cycles: 18 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 9mm | Length: 184mm | Art.-No.: ITR2071 | |
| Spiral mixer 160-824 LL | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 9mm | Length: 232mm | Art.-No.: ITR1868 | |

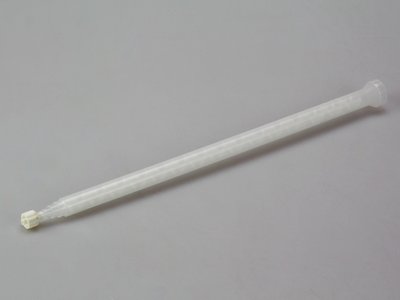

| Spiral mixer 160-830 LL | Application Type: Bead Application | Mix Cycles: 30 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 9mm | Length: 285mm | Art.-No.: ITR1867 | |
| Spiral mixer 160-840 LL | Application Type: Bead Application | Mix Cycles: 40 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 9mm | Length: 359mm | Art.-No.: ITR2074 | |

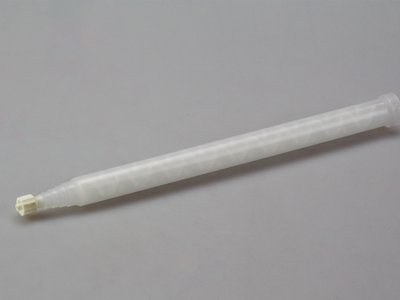

| Spiral mixer 161-218 LL | Application Type: Bead Application | Mix Cycles: 18 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 13mm | Length: 230mm | Art.-No.: ITR2076 |
