sulzer
MS Machine Static Mixer
Mixpac™
MS Machine Static Mixer

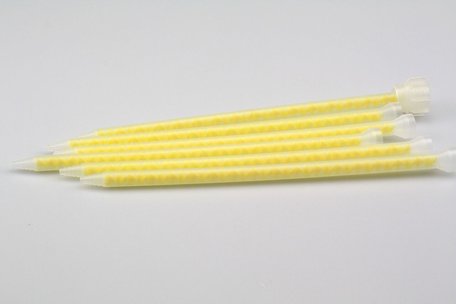

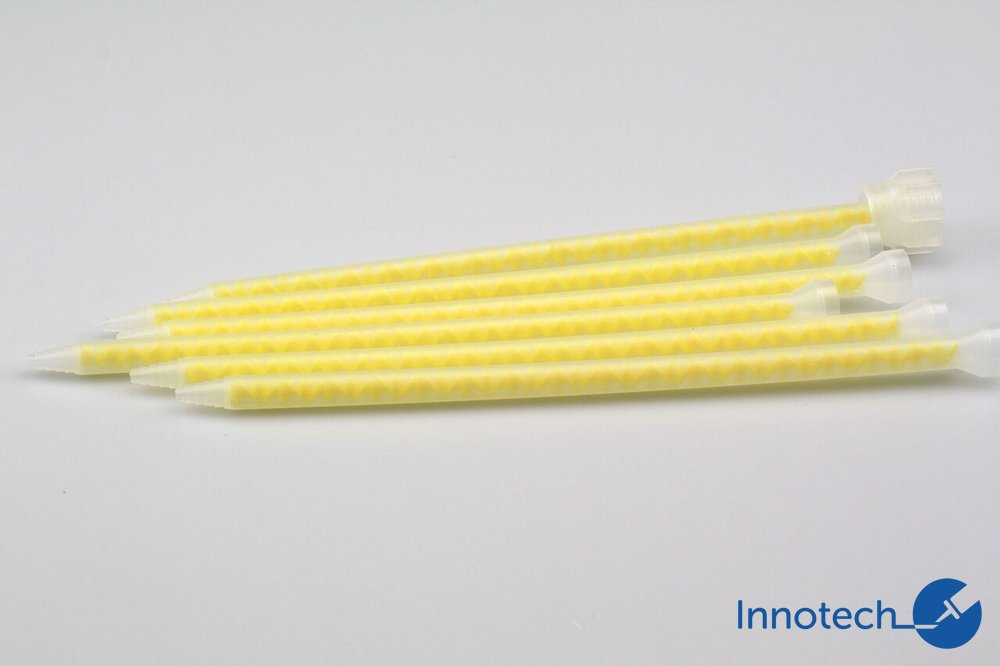

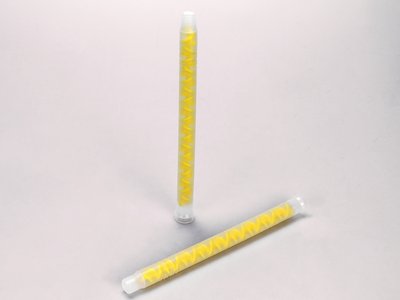

The MS Machine Static Mixers from medmix Switzerland AG are perfect for dispensing 2C adhesives and sealants. The static mixers feature a cup connection and can be used with cartridges. With a thicker wall thickness, they are suitable for high working pressure, with the recommendation of using protective tubes. For machines operating at lower pressure, all other mixers with cup connection are suitable. The cup connection measures 16.7mm.
| Manufacturer: | medmix Switzerland AG |
| Connection: | Cup Connection |
Variants of MS Machine Static Mixer
| Variant | Application Type | Mix Cycles | Mixture Ratios | Tip | Ø | Length | Art.-No. | |
|---|---|---|---|---|---|---|---|---|
| MS 05-24T | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 5mm | Length: 149mm | Art.-No.: ITR1843 | |
| MS 05-32T | Application Type: Bead Application | Mix Cycles: 32 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 5mm | Length: 188mm | Art.-No.: ITR1844 | |
| MS 06-24T | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 6mm | Length: 186mm | Art.-No.: ITR1845 | |
| MS 06-32T | Application Type: Bead Application | Mix Cycles: 32 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 6mm | Length: 235mm | Art.-No.: ITR1846 | |
MS 06-48T  | Application Type: Bead Application | Mix Cycles: 48 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 6mm | Length: 334mm | Art.-No.: ITR1847 | |
| MS 06-56D | Application Type: Bead Application | Mix Cycles: 56 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: straight | Diameter: 6mm | Length: 378mm | Art.-No.: ITR1848 | |
| MS 06-56L | Application Type: Bead Application | Mix Cycles: 56 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Luer-Lock | Diameter: 6mm | Length: 378mm | Art.-No.: ITR1849 | |
| MS 08-24T | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 8mm | Length: 223mm | Art.-No.: ITR1850 | |
| MS 08-32T | Application Type: Bead Application | Mix Cycles: 32 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 8mm | Length: 289mm | Art.-No.: ITR1322 | |
| MS 10-18T | Application Type: Bead Application | Mix Cycles: 18 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 10mm | Length: 214mm | Art.-No.: ITR1852 | |
| MS 10-24T | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 10mm | Length: 276mm | Art.-No.: ITR1853 | |
| MS 10-32T | Application Type: Bead Application | Mix Cycles: 32 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 10mm | Length: 352mm | Art.-No.: ITR1854 | |
| MS 13-12G | Application Type: Bead Application | Mix Cycles: 12 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Threaded Tip | Diameter: 13mm | Length: 159mm | Art.-No.: ITR1856 | |
| MS 13-18G | Application Type: Bead Application | Mix Cycles: 18 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Threaded Tip | Diameter: 13mm | Length: 223mm | Art.-No.: ITR1857 | |
| MS 13-24T | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 13mm | Length: 293mm | Art.-No.: ITR1858 | |
| MS 13-32G-01 | Application Type: Bead Application | Mix Cycles: 32 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: Threaded Tip | Diameter: 13mm | Length: 373mm | Art.-No.: ITR1859 | |
| MS 13-32T | Application Type: Bead Application | Mix Cycles: 32 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 13mm | Length: 378mm | Art.-No.: ITR1860 | |
| MS 06-18T | Application Type: Bead Application | Mix Cycles: 18 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 6mm | Length: 150mm | Art.-No.: ITR4446 |
