ME Machine Static Mixer
Mixpac™

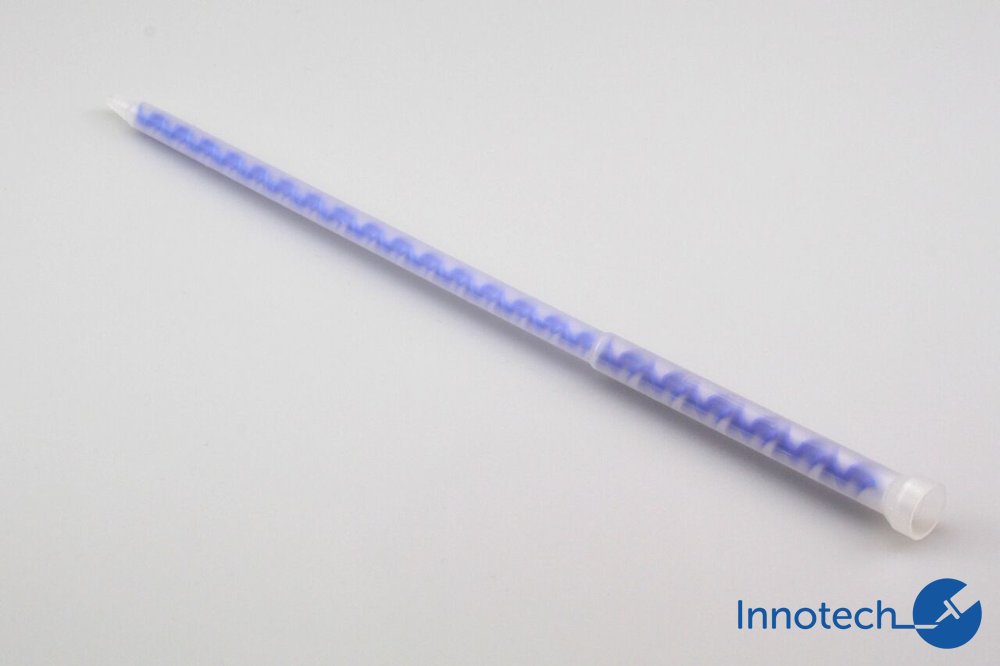

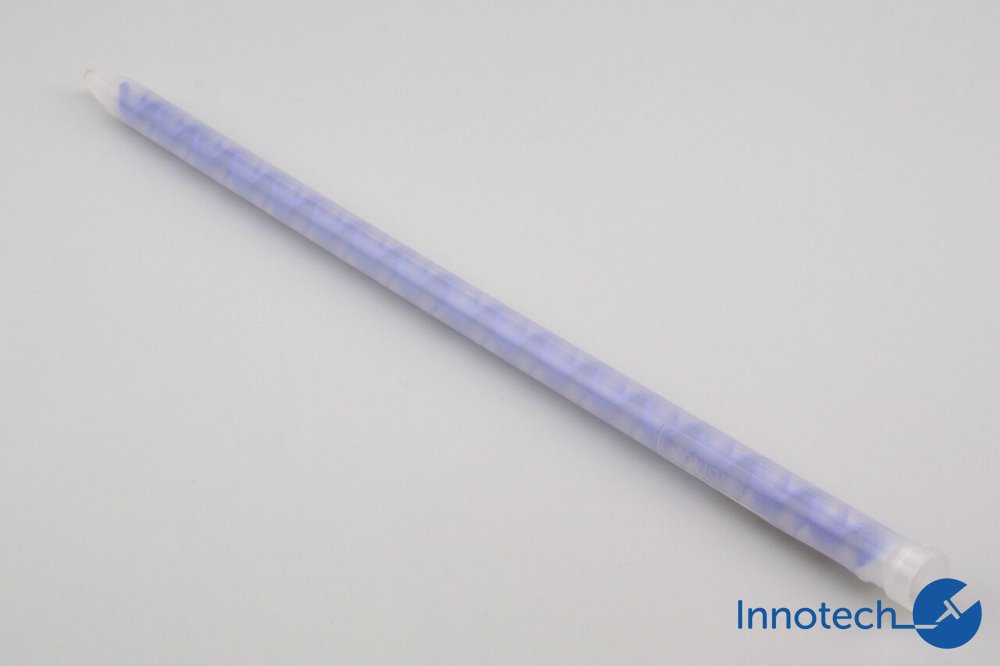

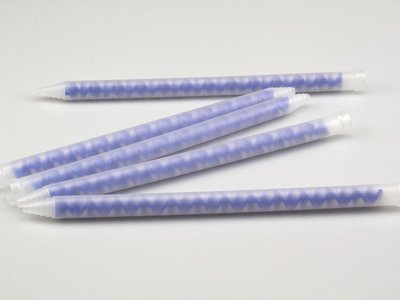

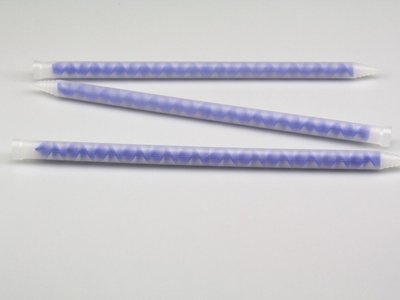

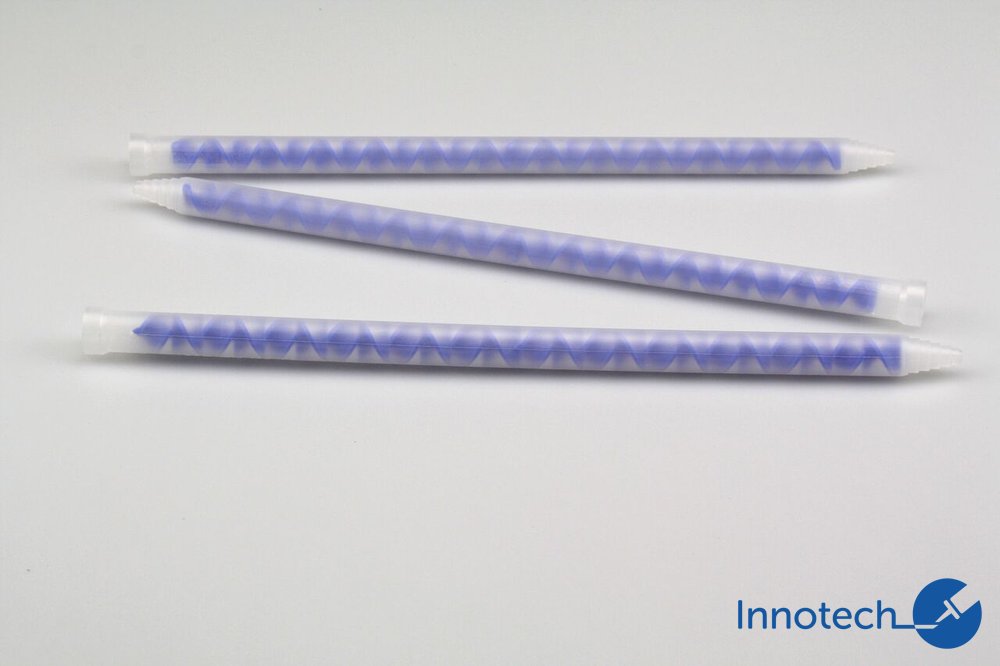

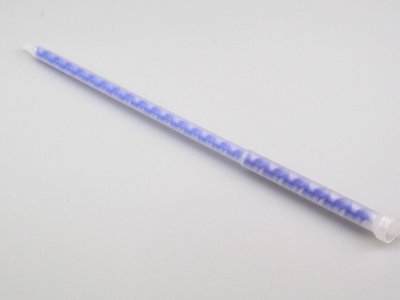

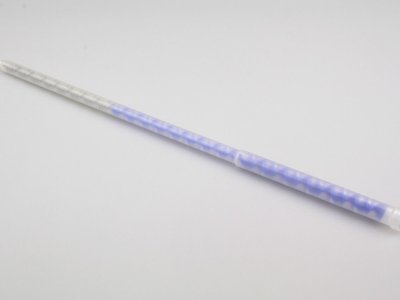

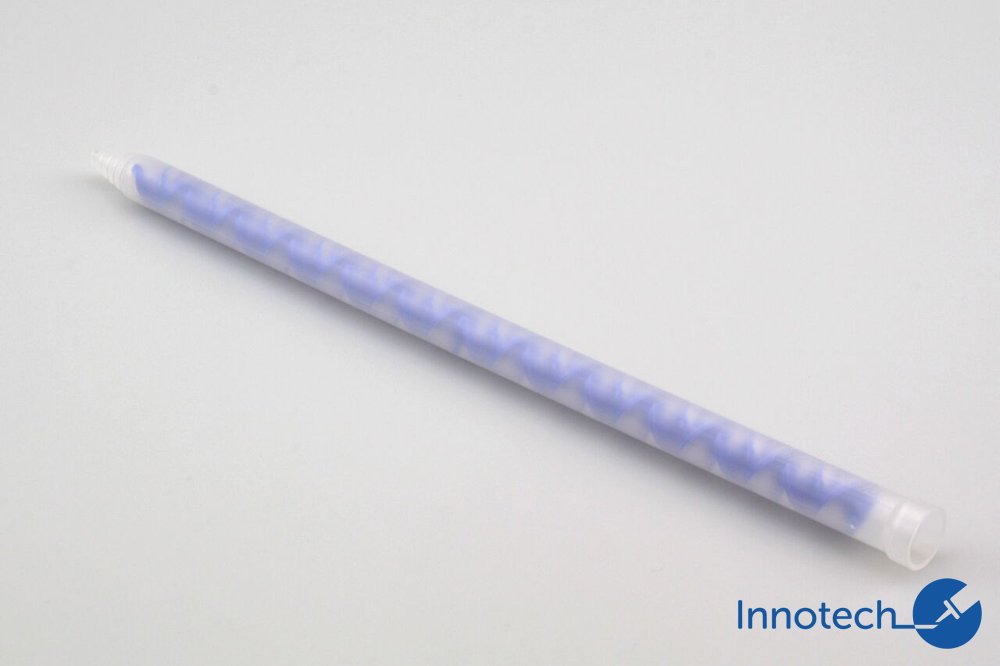

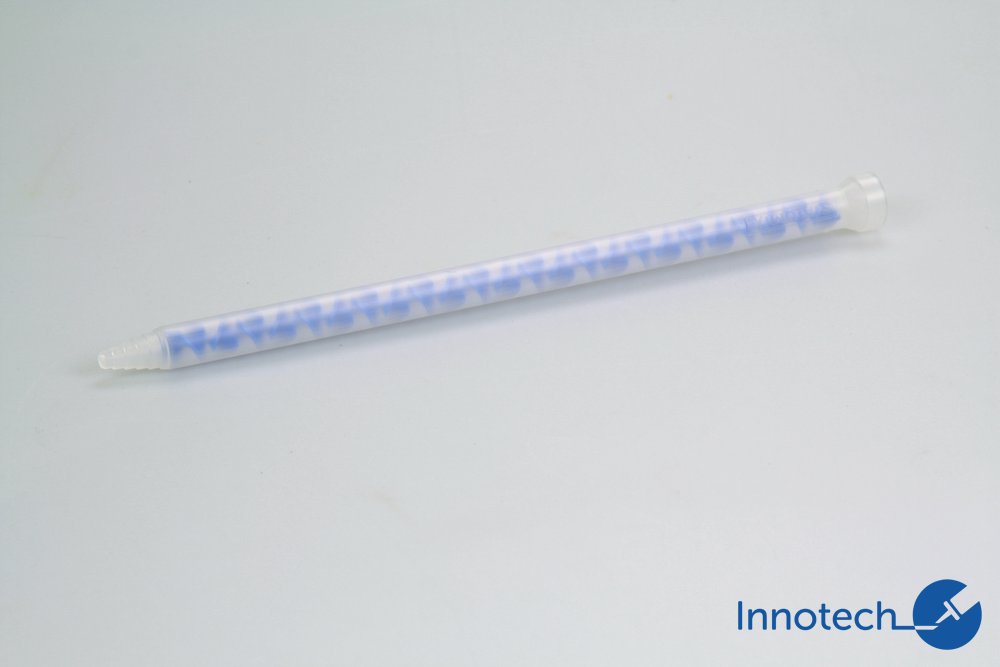

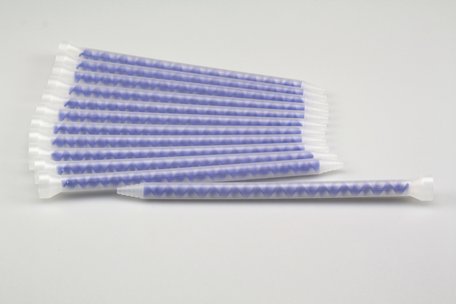

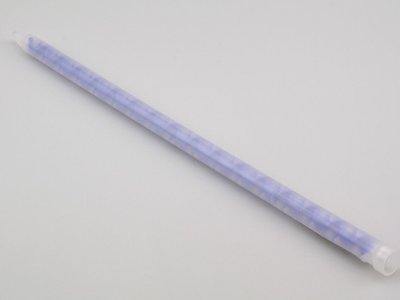

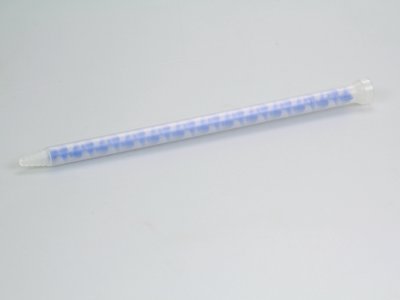

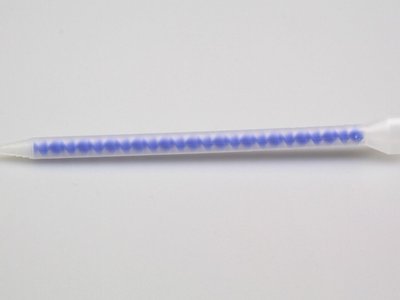

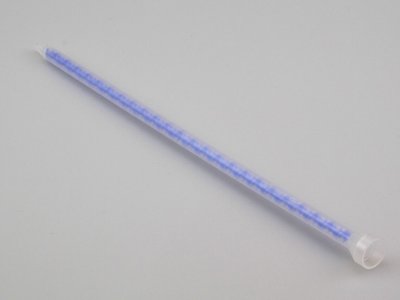

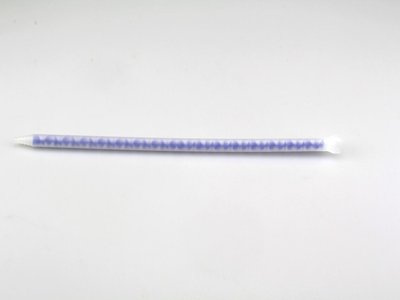

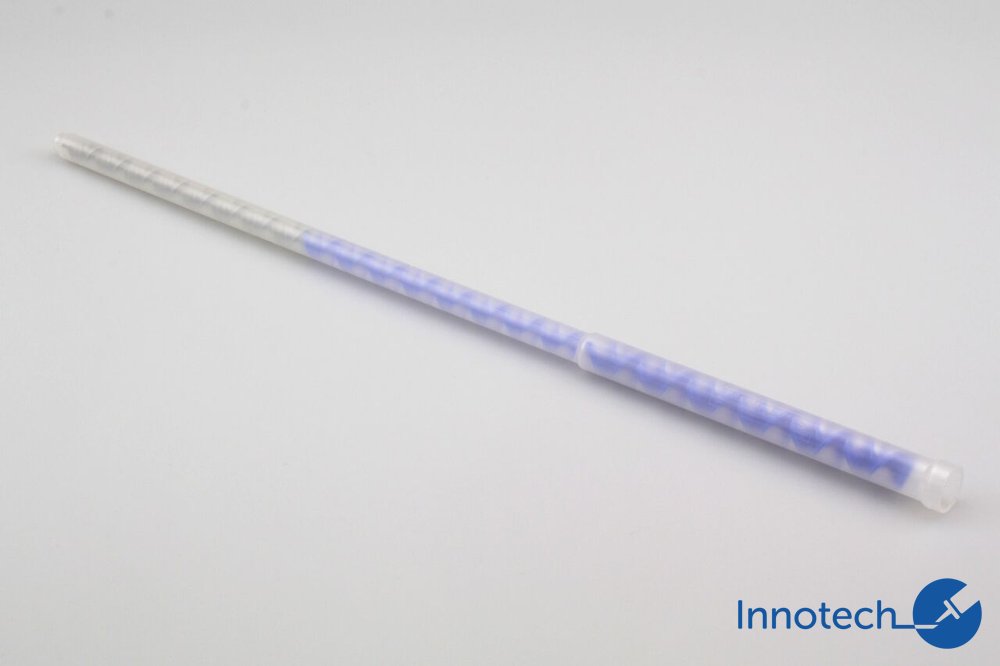

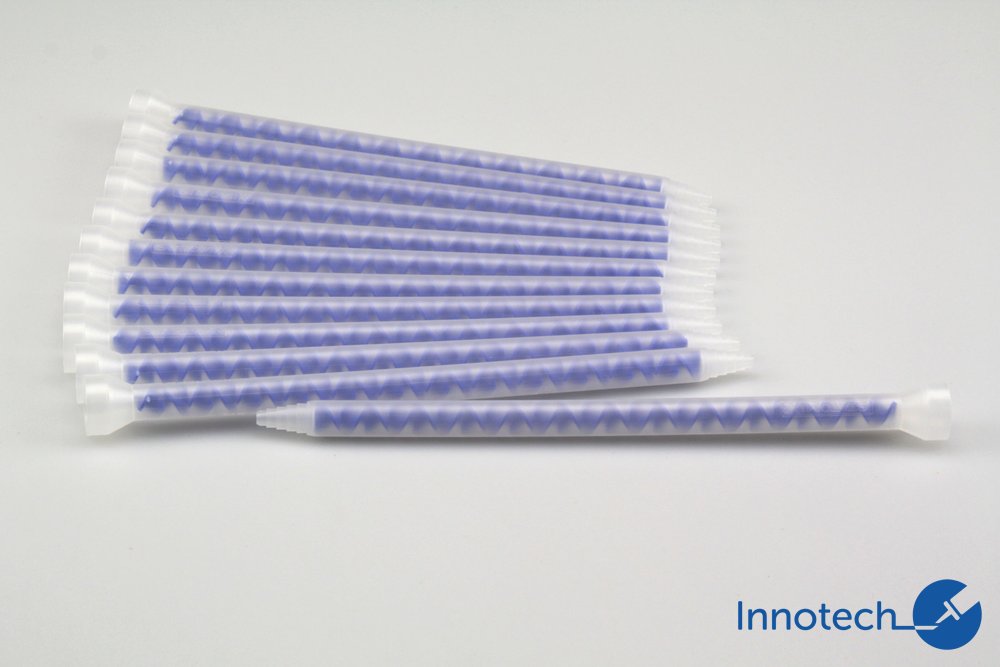

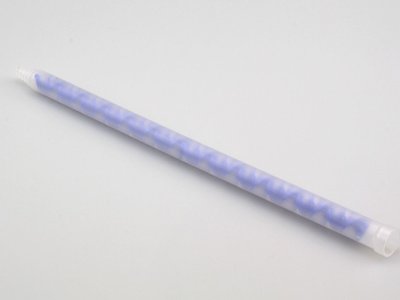

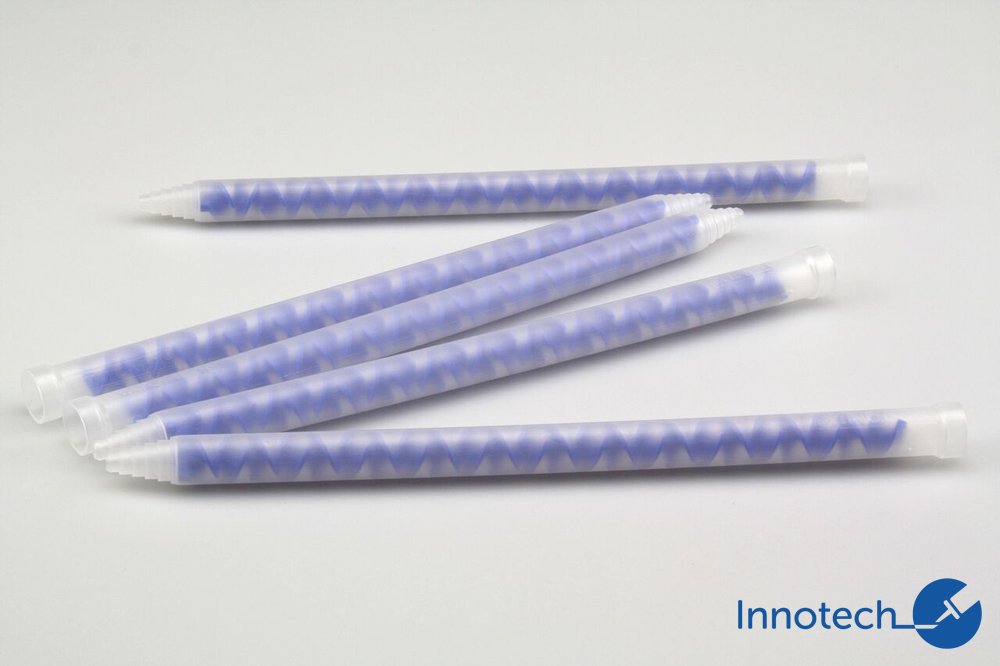

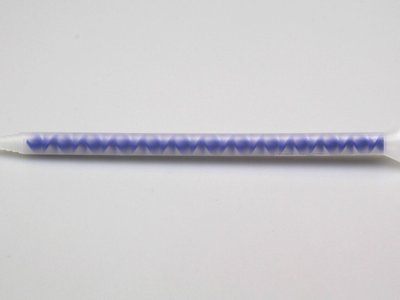

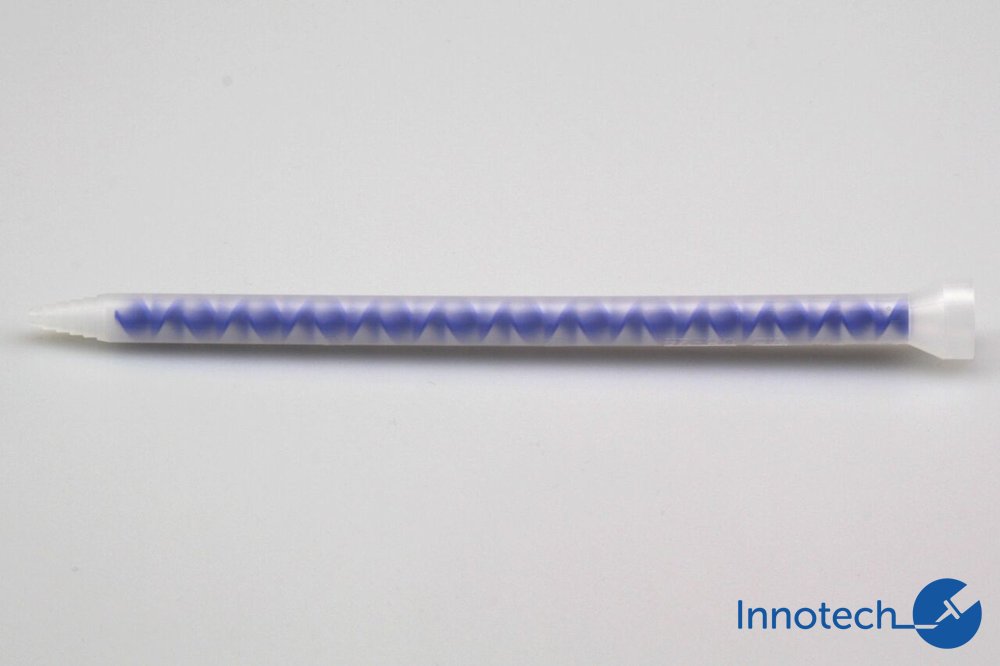

ME Machine Static Mixer
The ME Machine Static Mixers from medmix Switzerland AG are perfect for dispensing 2C adhesives and sealants. The static mixers feature a cup connection and can be used with cartridges. With a thicker wall thickness, they are suitable for high working pressure, with the recommendation of using protective tubes. For machines operating at lower pressure, all other mixers with cup connection are suitable, with a cup connection of 15.9mm.
| Manufacturer: | medmix Switzerland AG |
| Connection: | Cup Connection |
Variants of ME Machine Static Mixer
| Variant | Application Type | Mix Cycles | Mixture Ratios | Tip | Ø | Length | Art.-No. | |
|---|---|---|---|---|---|---|---|---|

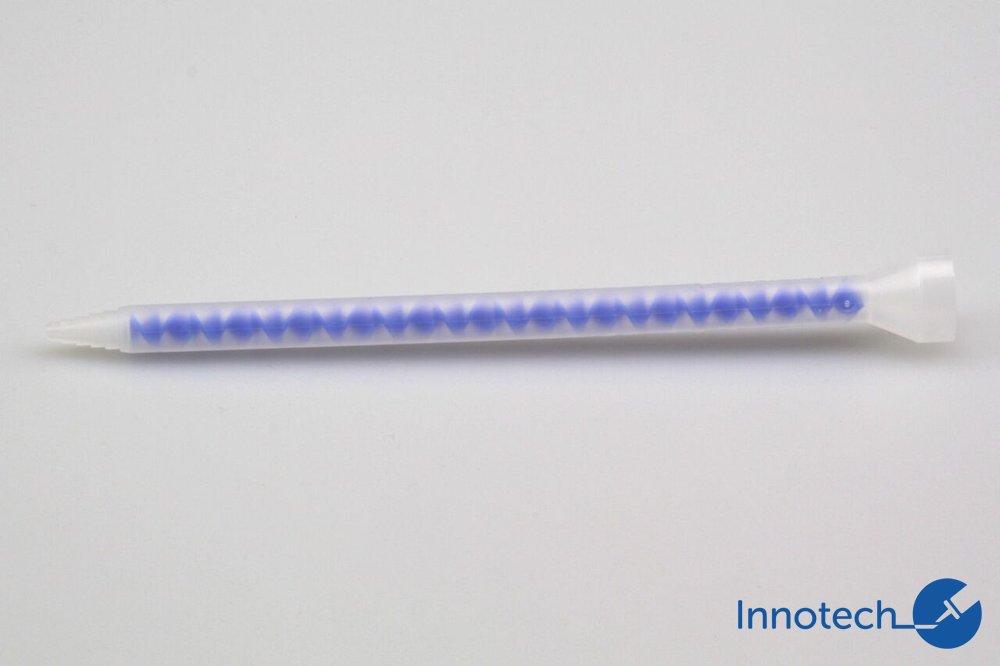

| ME 05-24T | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 5mm | Length: 149mm | Art.-No.: ITR1046 | |

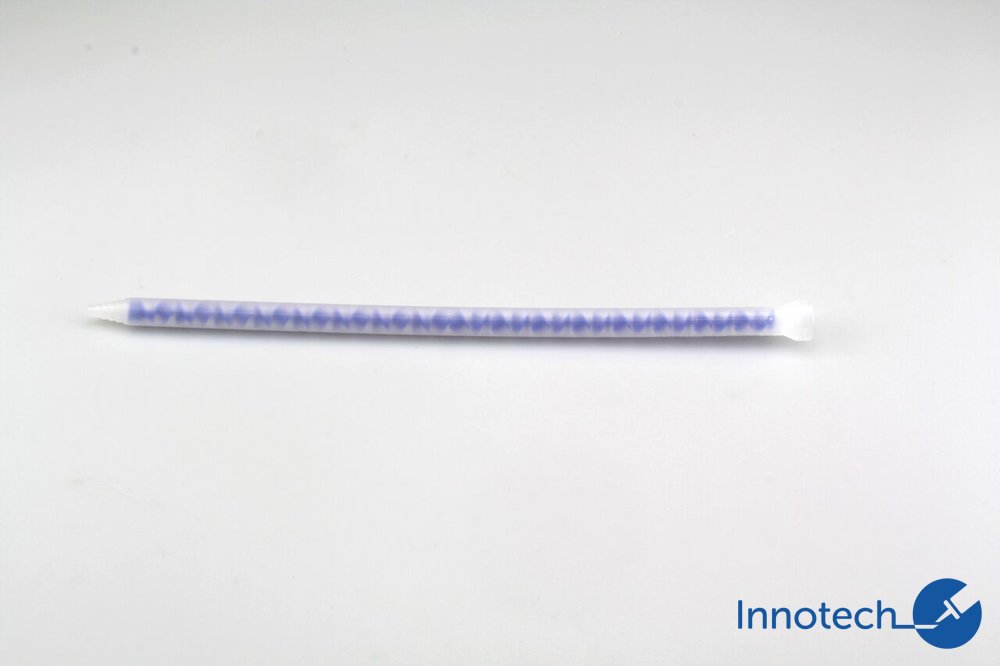

| ME 05-32T | Application Type: Bead Application | Mix Cycles: 32 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 5mm | Length: 188mm | Art.-No.: ITR1023 | |
| ME 06-24T | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 6mm | Length: 186mm | Art.-No.: ITR1620 | |

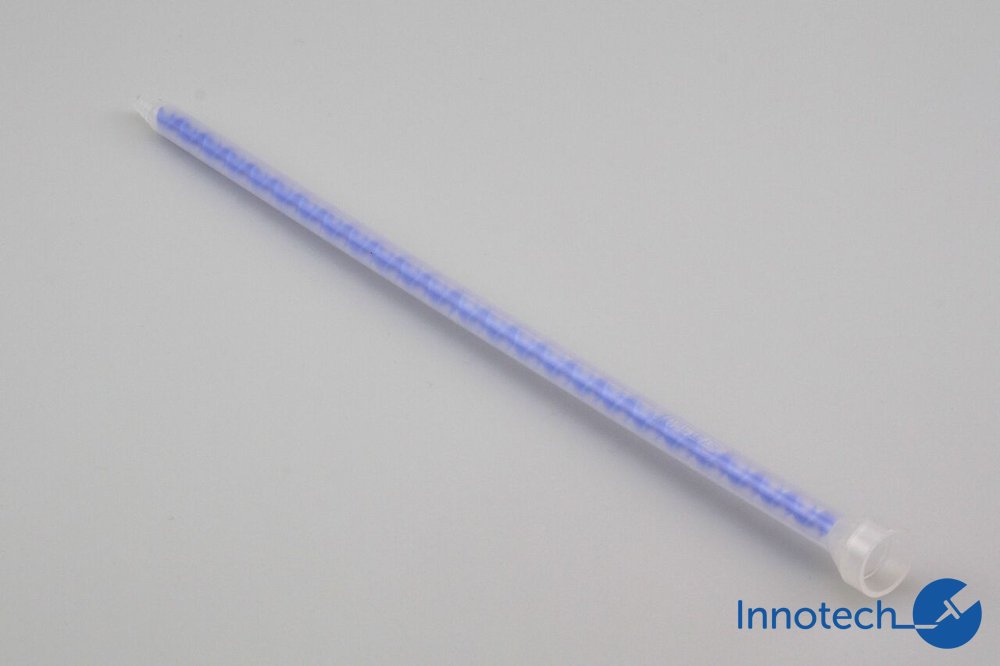

| ME 06-48T | Application Type: Bead Application | Mix Cycles: 48 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 6mm | Length: 334mm | Art.-No.: ITR1002 | |
| ME 08-24T | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 8mm | Length: 223mm | Art.-No.: ITR1247 | |
ME 08-32T  | Application Type: Bead Application | Mix Cycles: 32 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 8mm | Length: 289mm | Art.-No.: ITR1010 | |
| ME 1012-0832T | Application Type: Bead Application | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Length: 409mm | Art.-No.: ITR1030 | |||
| ME 10-24T | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 10mm | Length: 276mm | Art.-No.: ITR1016 | |
| ME 10-32T | Application Type: Bead Application | Mix Cycles: 32 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 10mm | Length: 355mm | Art.-No.: ITR1017 | |
| ME 1312-1032D | Application Type: Bead Application | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: straight | Length: 499mm | Art.-No.: ITR1033 | |||
| ME 13-24T | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 13mm | Length: 293mm | Art.-No.: ITR1011 | |
| ME 13-24T-02 | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 13mm | Length: 350mm | Art.-No.: ITR1006 | |
| ME 13-32T | Application Type: Bead Application | Mix Cycles: 32 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 13mm | Length: 379mm | Art.-No.: ITR1022 | |
| ME 13-32T-02 | Application Type: Bead Application | Mix Cycles: 32 | Mixture Ratios: 1:1, 2:1, 4:1, 10:1 | Tip: stepped | Diameter: 13mm | Length: 453mm | Art.-No.: ITR1419 |
