sulzer
Goblet Connection Quadro Mixer 1:1/2:1
Mixpac™
Goblet Connection Quadro Mixer 1:1/2:1
The Kelchanschluss Quadromischer 1:1/2:1 from medmix Switzerland AG are perfect for dispensing 2C adhesives and sealants. The static mixers can be used with cartridges featuring a Kelchanschluss connection. With the industrial standard connection of the C-system, the mixers can also be utilized for other large cartridge systems. Suitable nut for Kelchanschluss: 7/8“ – 9 UNC thread.
| Manufacturer: | medmix Switzerland AG |
| Connection: | Cup Connection |
Variants of Goblet Connection Quadro Mixer 1:1/2:1
| Variant | Application Type | Mix Cycles | Mixture Ratios | Tip | Ø | Length | Art.-No. | |
|---|---|---|---|---|---|---|---|---|
| MCQ 05-24L | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 1:1, 2:1 | Tip: Luer-Lock | Diameter: 5mm | Length: 127mm | Art.-No.: ITR1410 | |

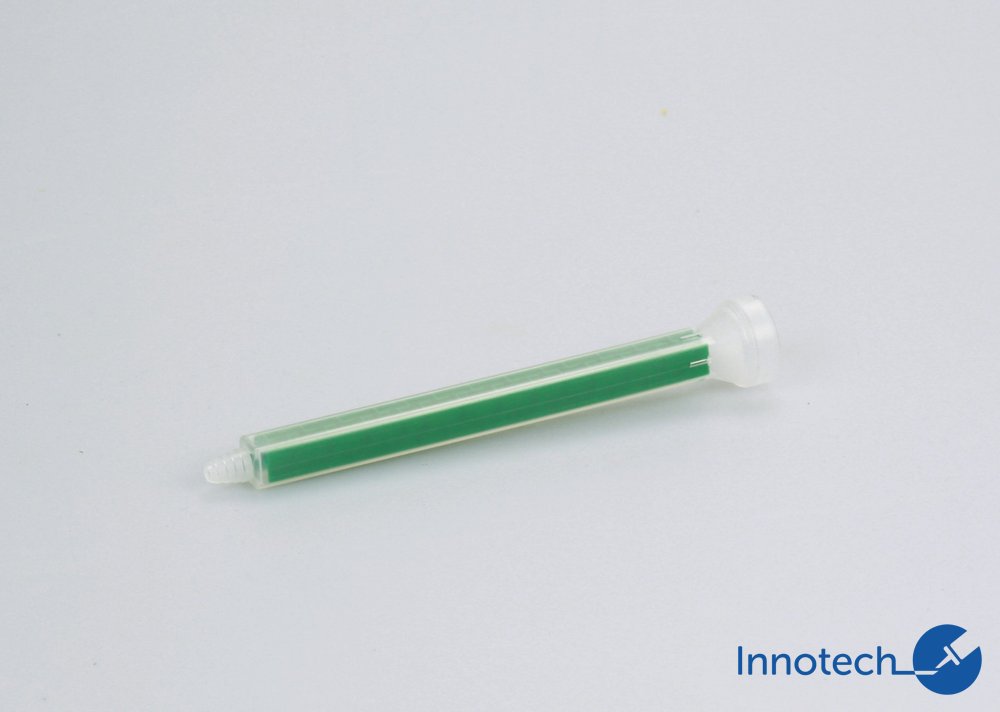

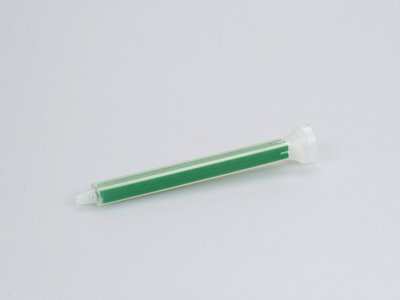

| MCQ 07-24T | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 1:1, 2:1 | Tip: stepped | Diameter: 7mm | Length: 130mm | Art.-No.: ITR1047 | |

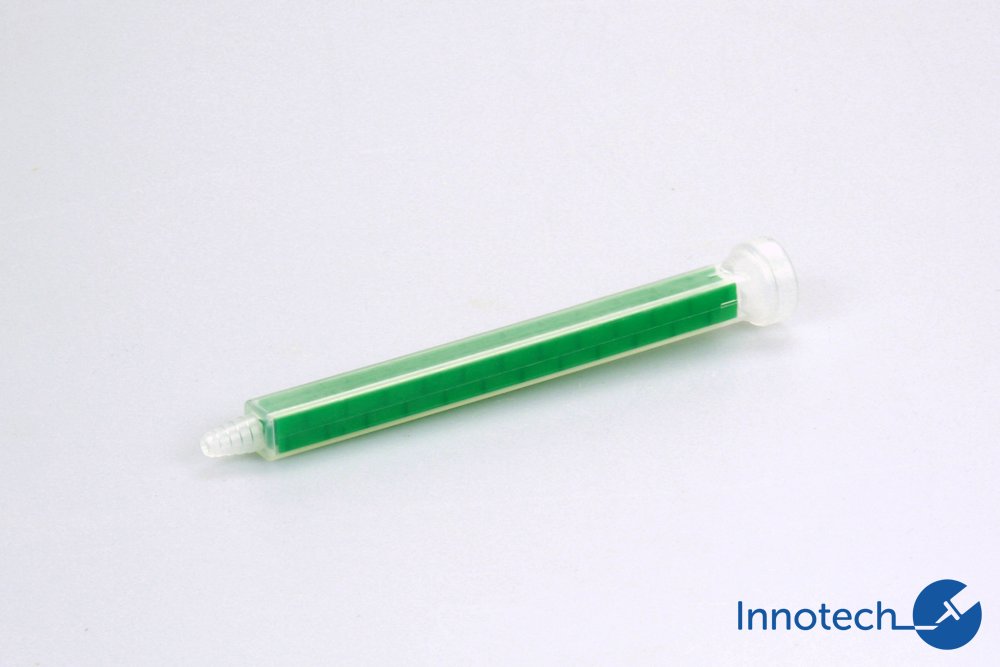

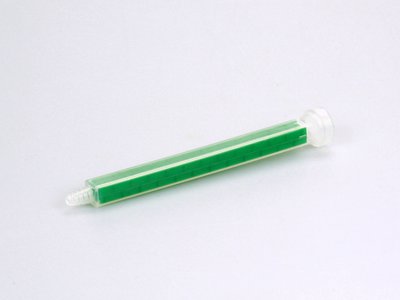

| MCQ 08-24T | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 1:1, 2:1 | Tip: stepped | Diameter: 8mm | Length: 147mm | Art.-No.: ITR1004 | |

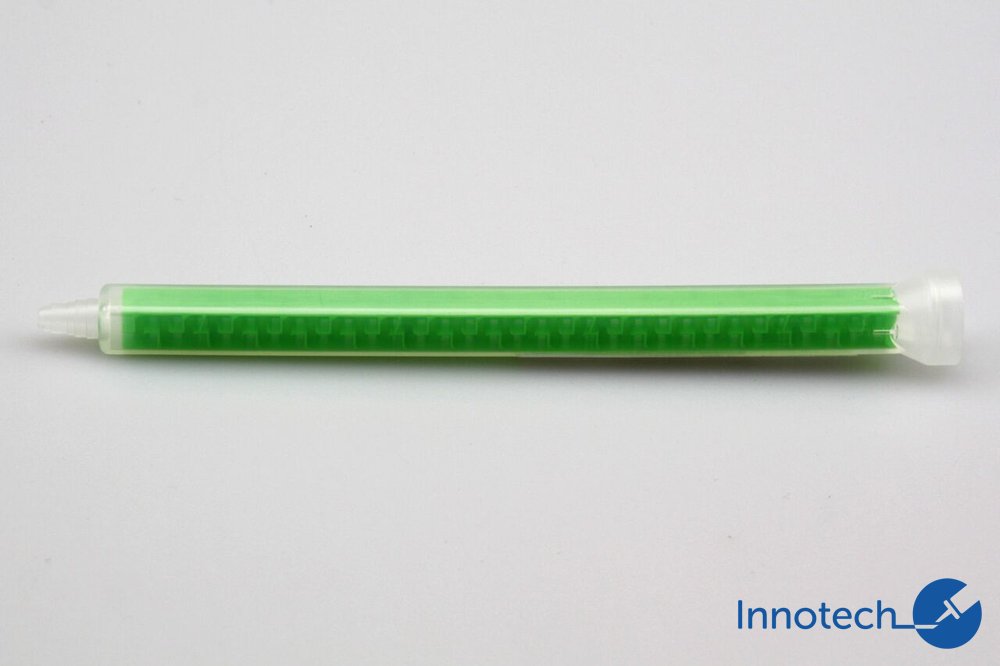

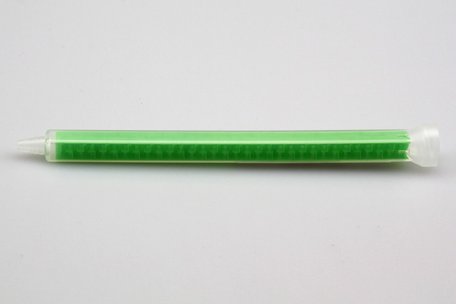

| MCQ 08-32T | Application Type: Bead Application | Mix Cycles: 32 | Mixture Ratios: 1:1, 2:1 | Tip: stepped | Diameter: 8mm | Length: 186mm | Art.-No.: ITR1582 | |
| MCQ 10-24T-01 | Application Type: Bead Application | Mix Cycles: 24 | Mixture Ratios: 1:1, 2:1 | Tip: stepped | Diameter: 10mm | Length: 172mm | Art.-No.: ITR1044 | |
| MCQ 10-32T | Application Type: Bead Application | Mix Cycles: 32 | Mixture Ratios: 1:1, 2:1 | Tip: stepped | Diameter: 10mm | Length: 220mm | Art.-No.: ITR1045 |
