fischbach
1C cartridges S15

1C Cartridge

Fischbach
1C cartridges S15

The 1C empty cartridges S15 by Fischbach KG Engelskirchen are the perfect solution for the application of 1C adhesives and sealants. With the S15 standard coarse thread, nozzles can be used for dispensing. These cartridges are ideal for automatic filling, assembly with the corresponding nozzle and piston systems, and automatic final packaging.

Manufacturer:	Fischbach KG Engelskirchen
Packaging Type:	Cartridge
Components:	1C
Connection:	S15 Standard Coarse Thread

Price Category 3

1C Cartridge

Variants of 1C cartridges S15

Variante	Capacity	Material	Wall Thickness	Length	⌀	Color	Art.-No.
E 280 cartridge	Capacity: 280ml	Material: HDPE	Wall Thickness: normal	Length: 212mm	Diameter: 45mm	Color: white	Art.-No.: ITR2201
E 290 H cartridge	Capacity: 290ml	Material: HDPE	Wall Thickness: thick	Length: 216mm	Diameter: 45mm	Color: white	Art.-No.: ITR4570
E 310 cartridge	Capacity: 310ml	Material: HDPE	Wall Thickness: normal	Length: 216mm	Diameter: 46mm	Color: white	Art.-No.: ITR1363
E 310 L cartridge	Capacity: 310ml	Material: HDPE	Wall Thickness: thin	Length: 216mm	Diameter: 46mm	Color: white	Art.-No.: ITR2204
E 310 PA cartridge	Capacity: 310ml	Material: PA	Wall Thickness: thin	Length: 216mm	Diameter: 46mm	Color: white	Art.-No.: ITR2205
E 310 PA T cartridge	Capacity: 310ml	Material: PA	Wall Thickness: thin	Length: 216mm	Diameter: 46mm	Color: transparent	Art.-No.: ITR2206
E 310 PP T cartridge	Capacity: 310ml	Material: PP	Wall Thickness: normal	Length: 216mm	Diameter: 46mm	Color: transparent	Art.-No.: ITR2207
E 900 S cartridge	Capacity: 900ml	Material: HDPE	Wall Thickness: normal	Length: 317mm	Diameter: 62mm	Color: white	Art.-No.: ITR2210
ED 310 cartridge	Capacity: 310ml	Material: HDPE	Wall Thickness: normal	Length: 216mm	Diameter: 46mm	Color: white	Art.-No.: ITR2212
ED 310 L cartridge	Capacity: 310ml	Material: HDPE	Wall Thickness: normal	Length: 216mm	Diameter: 46mm	Color: white	Art.-No.: ITR2213
F 40 cartridge	Capacity: 400ml	Material: PP	Wall Thickness: thin	Length: 236mm	Diameter: 51mm	Color: white	Art.-No.: ITR2214
F 40 RP cartridge	Capacity: 400ml	Material: PP	Wall Thickness: thin	Length: 237mm	Diameter: 51mm	Color: white	Art.-No.: ITR2215
F 40 UK cartridge	Capacity: 400ml	Material: PP	Wall Thickness: normal	Length: 237mm	Diameter: 53mm	Color: white	Art.-No.: ITR2216
G 15 cartridge	Capacity: 150ml	Material: HDPE	Wall Thickness: normal	Length: 128mm	Diameter: 46mm	Color: white	Art.-No.: ITR2217
G 80 cartridge	Capacity: 75ml	Material: HDPE	Wall Thickness: normal	Length: 159mm	Diameter: 28mm	Color: white	Art.-No.: ITR2219

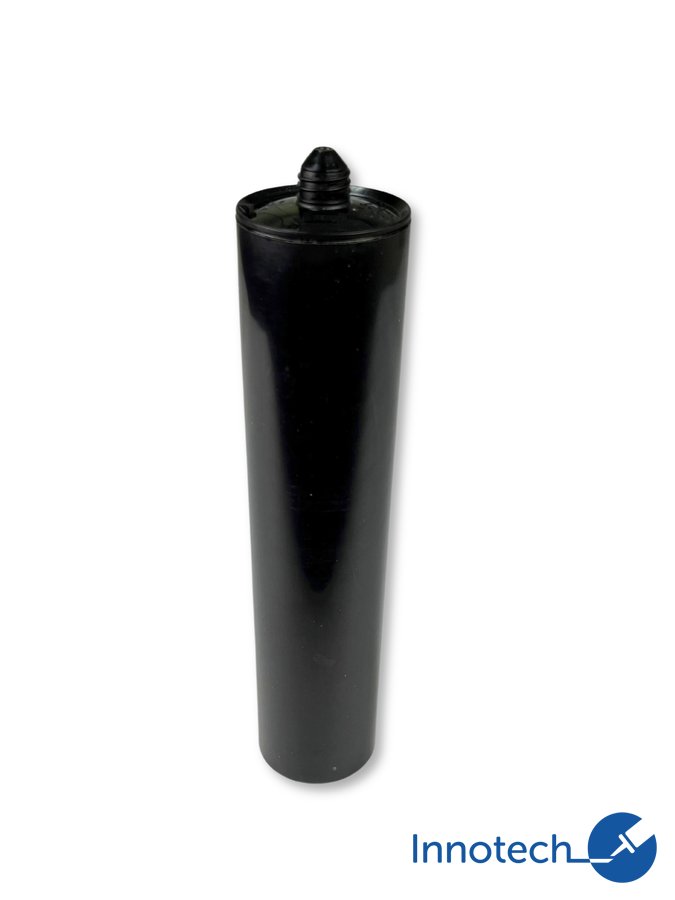

rE 310 cartridge black	Capacity: 310ml	Material: Post-Consumer-Recycled	Wall Thickness: normal	Length: 216mm	Diameter: 46mm	Color: black	Art.-No.: ITR4537

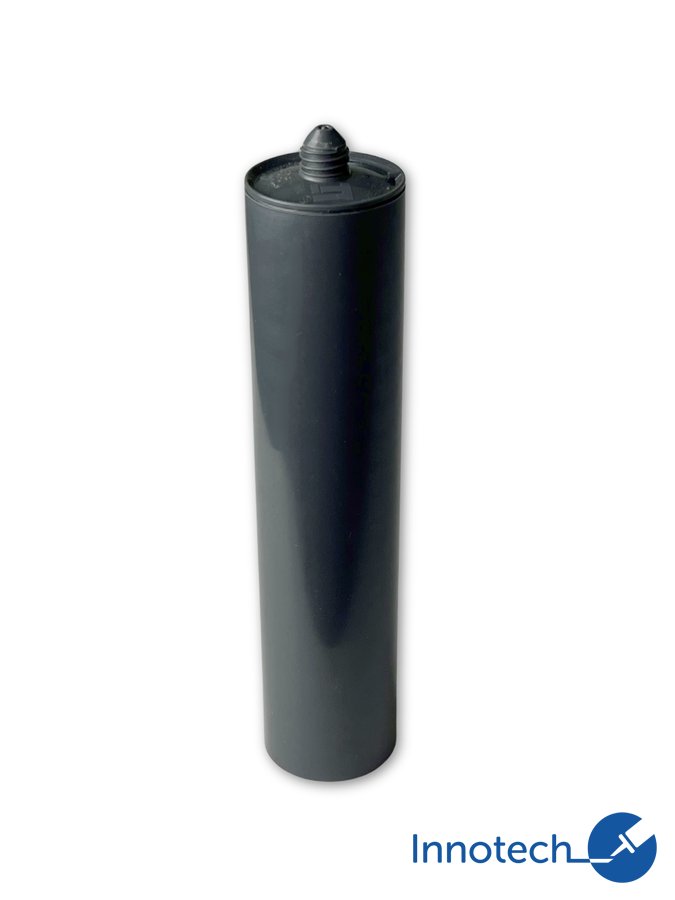

rE 310 cartridge grey	Capacity: 310ml	Material: Post-Consumer-Recycled	Wall Thickness: normal	Length: 216mm	Diameter: 46mm	Color: gray	Art.-No.: ITR4538
